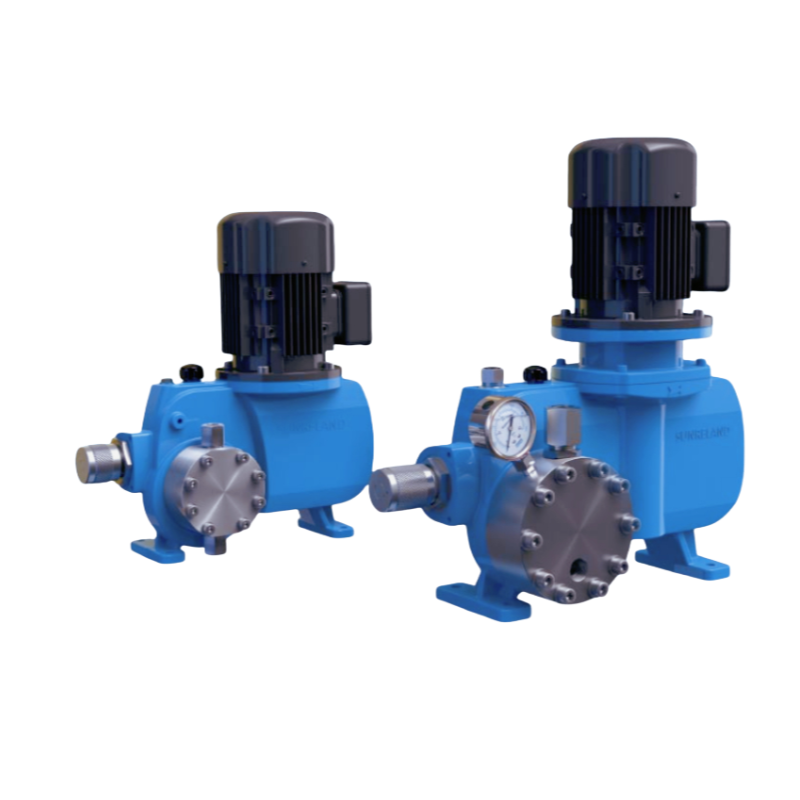

Flow rate adjustment methods
Manual adjustment:change the stroke length through handwheel
■Adjust flow rate is available either during running or at standstill
■Minimum adjustment scale is 1%
Electric actuated stroke controller: receive external control signal to adjust the stroke length
■Power source: 220V-50Hz-single phase
■Input signal: 4-20mA simulated signal
■Output signal: 4-20mA/1-5V simulated signal, used for record display and control system
Frequency conversion controller: receive external control signal to adjust the stroke speed
■Power supply: 220V-50Hz-single phase or 380V-50Hz-three phase
■Input signal: 4-20mA simulated signal
α-Power Series Data Sheet
| Plunger | Speed | Flow rate | Pressure | Connection |
| mm | spm | L/h | bar | |
Φ15 | 47 | 2 | 125 | Suction: NPT 1/2"F Horizontal Discharge: NPT 1/4"F Horizontal |
| 72 | 3 | |||
| 110 | 5 | |||
| 144 | 7 | |||
| 175 | 8 | |||
Φ17 | 47 | 4 | 106 | |
| 72 | 6 | |||
| 110 | 9 | |||
| 144 | 12 | |||
| 175 | 15 | |||
Φ19.5 | 47 | 7 | 67 | Suction: NPT 1/2"F Horizontal Discharge: NPT 1/4"F Horizontal |
| 72 | 11 | |||
| 110 | 17 | |||
| 144 | 22 | |||
| 175 | 27 | |||
| Φ23 | 47 | 13 | 42 | |
| 72 | 19 | |||
| 110 | 29 | |||
| 144 | 38 | |||
| 175 | 47 | |||
| Φ28 | 47 | 22 | 25 | |
| 72 | 33 | |||
| 110 | 51 | |||
| 144 | 66 | |||
| 175 | 81 |

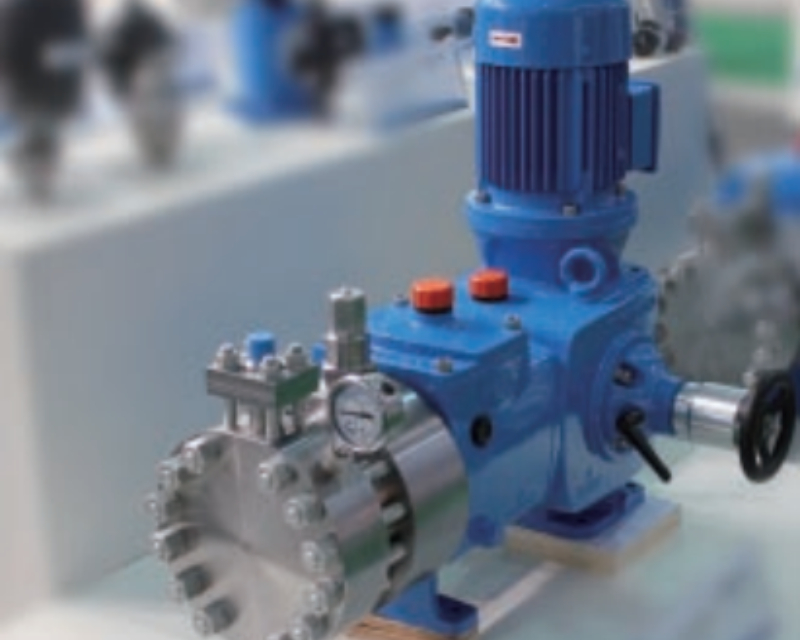

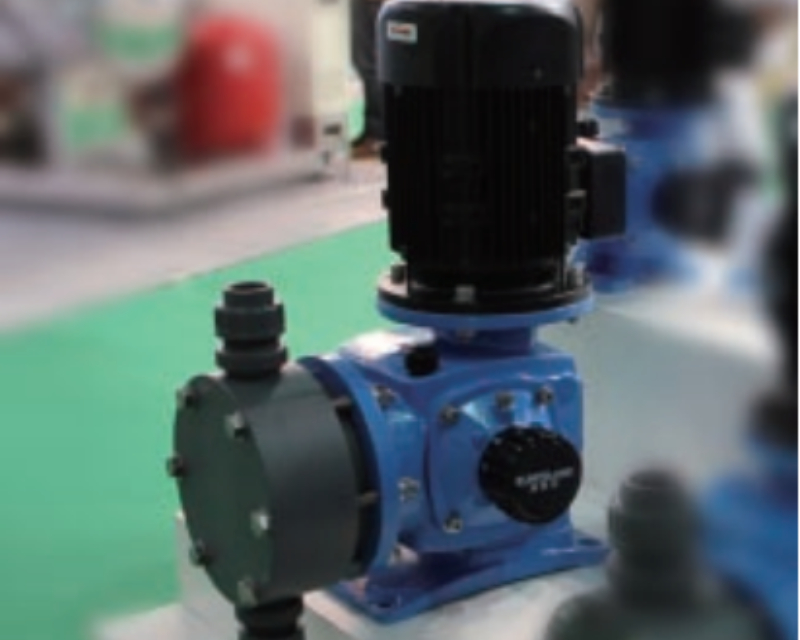

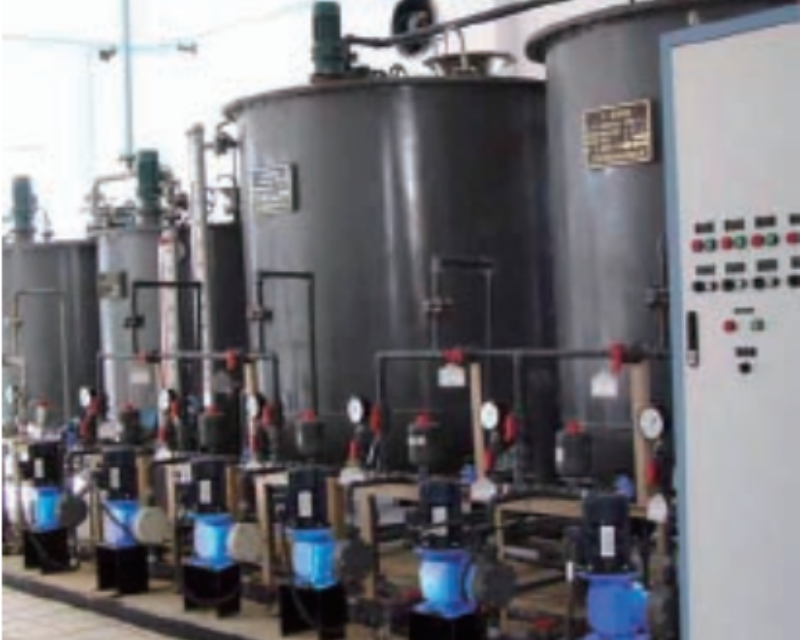

• Many detective methods: on-site signs of diaphragm rupture and distant signal transmission
• Internal pressure relief valve which ensures the stability of output flow rate so as to meet the accuracy requirements
• Various check valve configuration: single-ball valve, double-ball valve, spring loaded valve
• Various connection methods: threaded connection, flange connection
• Flow rate could be continuous adjusted from 0% to 100% through the hydraulic oil way control
• Metering accuracy: 1%, turndown ratio: 10:1
• Tapered roller-bearing suit high loads operation condition
• Oil bath lubrication ensures low wear and high reliability
• Oil bath lubrication ensures low wear and high reliability
• High-efficiency worm gear and worm shaft decelerating mechanism works steadily with low noise
• Compact structure and small volume, suit limited installation space
• The design and manufacture complies with the API 675 standards
Flow rate adjustment methods
Manual adjustment:change the stroke length through handwheel
■Adjust flow rate is available either during running or at standstill
■Minimum adjustment scale is 1%
Electric actuated stroke controller: receive external control signal to adjust the stroke length
■Power source: 220V-50Hz-single phase
■Input signal: 4-20mA simulated signal
■Output signal: 4-20mA/1-5V simulated signal, used for record display and control system
Frequency conversion controller: receive external control signal to adjust the stroke speed
■Power supply: 220V-50Hz-single phase or 380V-50Hz-three phase
■Input signal: 4-20mA simulated signal
α-Power Series Data Sheet
| Plunger | Speed | Flow rate | Pressure | Connection |
| mm | spm | L/h | bar | |
Φ15 | 47 | 2 | 125 | Suction: NPT 1/2"F Horizontal Discharge: NPT 1/4"F Horizontal |
| 72 | 3 | |||
| 110 | 5 | |||
| 144 | 7 | |||
| 175 | 8 | |||
Φ17 | 47 | 4 | 106 | |
| 72 | 6 | |||
| 110 | 9 | |||
| 144 | 12 | |||
| 175 | 15 | |||
Φ19.5 | 47 | 7 | 67 | Suction: NPT 1/2"F Horizontal Discharge: NPT 1/4"F Horizontal |
| 72 | 11 | |||
| 110 | 17 | |||
| 144 | 22 | |||
| 175 | 27 | |||
| Φ23 | 47 | 13 | 42 | |
| 72 | 19 | |||
| 110 | 29 | |||
| 144 | 38 | |||
| 175 | 47 | |||
| Φ28 | 47 | 22 | 25 | |
| 72 | 33 | |||
| 110 | 51 | |||
| 144 | 66 | |||
| 175 | 81 |
• Many detective methods: on-site signs of diaphragm rupture and distant signal transmission
• Internal pressure relief valve which ensures the stability of output flow rate so as to meet the accuracy requirements
• Various check valve configuration: single-ball valve, double-ball valve, spring loaded valve
• Various connection methods: threaded connection, flange connection
• Flow rate could be continuous adjusted from 0% to 100% through the hydraulic oil way control
• Metering accuracy: 1%, turndown ratio: 10:1
• Tapered roller-bearing suit high loads operation condition
• Oil bath lubrication ensures low wear and high reliability
• Oil bath lubrication ensures low wear and high reliability
• High-efficiency worm gear and worm shaft decelerating mechanism works steadily with low noise
• Compact structure and small volume, suit limited installation space
• The design and manufacture complies with the API 675 standards
