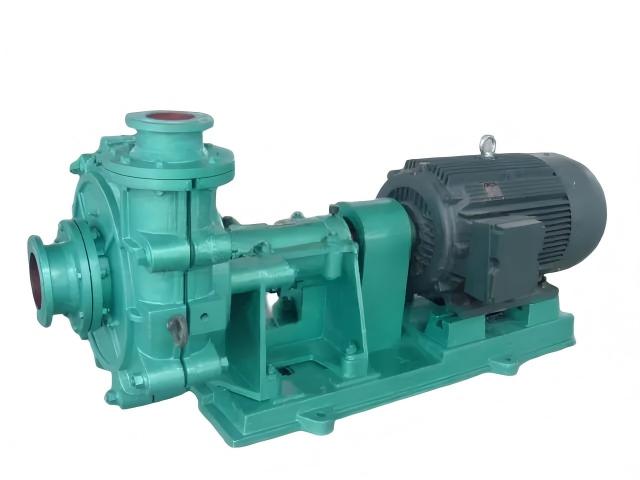

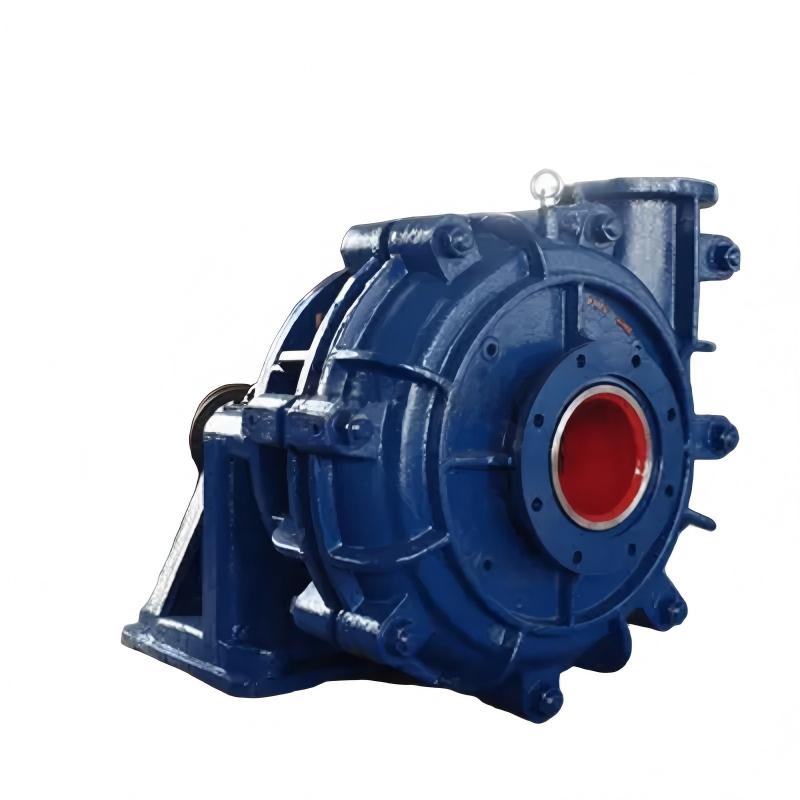

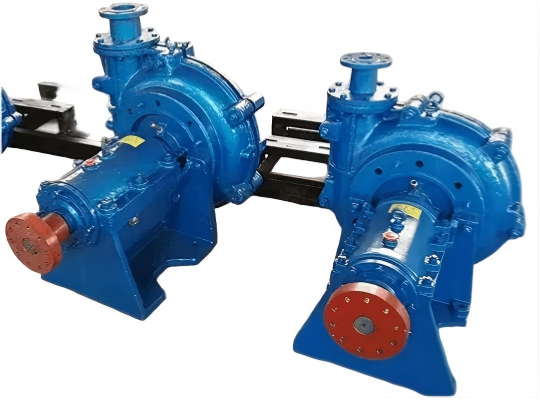

Ash Pump

Horizontal ash slurry pump is specially designed for boiler ash handling systems in small and medium power plants (<50MW)

Availability:

Quantity:



Inquire Add to Basket

Model:
200ZJ-I-A65 250ZJ-I-A75 150ZGB/200ZGB 4/3C-AH 6/4D-AH
Code:
8413709990

Product Description

Complete Slurry Pump Solution: ZJ/ZGB/AH Series for Power Plants

We offers a full-range slurry pump portfolio, including ZJ horizontal/vertical cantilever pumps, ZGB heavy-duty high-head pumps, and AH series, specially engineered for boiler ash handling, bottom ash, and fly ash slurry transport in small to medium power plants (<50MW) across Southeast Asia.

Core Application

- Boiler bottom ash & fly ash slurry transport

- High-concentration ash slurry (up to 45% solid content) delivery

- Coastal power plants with salt spray & high sediment water

- 15-50MW power plants in Indonesia, Vietnam, Philippines, Thailand

Advantages

1. Extreme Wear Resistance

- Cr27 high chrome alloy impeller & wetted parts, HRC ≥60

- 3x longer service life than ordinary cast iron pumps

- Ideal for high-abrasion ash slurry conditions

2. Anti-Clog & Stable Performance

- Wide flow channel design, effectively prevent blockage

- Excellent anti-cavitation performance, 24/7 continuous operation

- Low vibration, low noise, stable operation in tropical environment

3. Easy Maintenance & Cost-Effective

- Modular structure, quick disassembly for on-site maintenance

- Competitive price, 30-50% lower than imported brands (Warman/Metso)

- Complete spare parts supply & after-sales service in Southeast Asia

Recommended Models for ＜50MW Power Plants

1. Changsha Zoomlian Pump - 200ZJ/250ZJ Series / ZGB Series / AH Series

Type	Capacity (Q) m³/h	Head (H) m	Speed (n) r/min	NPSHr (m)	Efficieney (η) %	Shaft Power (P) Kw	Matingmotor	weiget (kg)	Overall dimensions L×W×H (mm)	Dia. of pump (mm)
										Dia. of pump (mm)
										Inlet	Outlet
200ZJ-I-A65	470	72.0	980	4.3	63.2	145.8	Y355M2-6 185Kw	2450	1590×1000×1338	250	200
	820	68.1			77	197.5	Y355-6 250Kw/6KV
	950	65.6			79.6	213.2	Y355-6 250Kw/6KV
	350	40.0	730	2.5	63.2	60.3	Y315M-8 75Kw	2450	1590×1000×1338	250	200
	611	37.8			77	81.7	Y315M-8 110Kw
	708	36.4			79.6	88.2	Y315M-8 110Kw
250ZJ-I-A75	600	97.5	980	4.1	62.3	255.7	Y400-6 315Kw/6KV	3600	1913×1200×1628	300	250
	1100	92.2			76	362.6	Y450-6 450Kw/6KV
	1480	83.2			75.6	443.6	Y450-6 560Kw/6KV
	447	54.1	730	3	62.3	105.7	Y355M1-8 132Kw	3600	1913×1200×1628	300	250
	819	51			76	149.7	Y355L1-8 185Kw
	1102	46.2			75.6	183.4	Y400-8 220Kw/6KV
150ZGBP	360.00	92.10	980	2.7	53.3	165.5	Y355M2-6 185Kw	3450	2040×1300×1470	203	152
	601.20	90.00		3.5	7.0	204.7	Y400-6 280Kw 6KV
	720.00	86.00		3.8	77.7	215	Y400-6 315Kw 6KV
150ZGBP	272.20	52.50	740	1.5	53.3	71.3	Y315M2-8 90Kw	3450	2040×1300×1470	203	152
	453.60	51.00		2	70	88.1	Y355M1-8 132Kw
	544.30	49.00		2.2	77.7	92.7	Y355M2-8 160Kw
150ZGBP	328.30	79.50	980	2.3	53.3	129.3	Y255M1-6 160Kw	3450	2040×1300×1400	203	152
	547.20	77.00		3	70	159.7	Y355L1-6 220Kw
	656.60	74.00		3.3	77.7	168	Y355L2-6 250Kw
150ZGBP	252.70	46.00	740	1.3	53.3	56.8	Y315M1-8 75Kw	3450	2040×1300×1400	203	152
	421.20	44.00		1.7	70	70.1	Y315M3-8 110Kw
	505.40	42.00		1.9	77.7	74.2	Y315M3-8 110Kw
150ZGBP	304.60	65.50	980	1.1	53.3	101.5	Y315M2-6 10Kw	3450	2040×1300×1400	203	152
	507.60	65.00		1.5	70	125.2	Y355M2-6 185Kw
	609.10	63.00		2.8	77.7	131.9	Y355M3-6 200Kw
150ZGBP	233.30	38.00	740	0.6	53.3	44.3	Y315S-8 55Kw	3450	2040×1300×1400	203	152
	388.80	37.00		0.9	70	54.6	Y315M1-8 75Kw
	466.60	35.50		1.6	77.7	57.6	Y315M2-8 90Kw
200ZGBP	600.10	95.50	980	2.7	63.2	219.1	Y400-6 355Kw 6KV	4000	2200×1410×1665	250	200
	799.90	94.50		5.6	73.7	310.5	Y450-6 450Kw 6KV
	1000.00	91.50		6.7	76.3	342.9	Y450-6 500Kw 6KV
200ZGBP	474.80	54.50	740	1.5	63.2	94.3	Y355M2-8 160Kw	4000	2200×1410×1665	250	200
	685.10	54.00		3.2	73.7	134.3	Y355L2-8 200Kw
	870.10	52.50		3.8	76.3	147.5	Y400-8 250Kw 6KV
200ZGBP	560.20	81.00	980	2.4	63.2	185.5	Y400-6 380Kw 6KV	4000	2200×1410×1665	250	200
	749.90	80.00		5.0	73.7	262.3	Y400-6 355Kw 6KV
	950.00	77.00		6.0	76.3	290.2	Y400-6 400Kw 6KV
200ZGBP	450.00	48.00	740	1.4	63.2	80.0	Y355M1-8 132Kw	4000	2200×1410×1665	250	200
	645.10	47.50		2.9	73.7	113.0	Y355M2-8 160Kw
	839.90	46.50		3.4	76.3	125.0	Y355L2-8 200Kw
200ZGBP	519.80	68.00	980	2.0	63.2	141.8	Y355L1-6 220Kw	4000	2200×1410×1665	250	200
	730.10	67.00		4.2	73.7	210.0	Y355L2-6 250kw
	940.00	64.00		5.0	76.3	222.0	Y400-6 315Kw 6KV
200ZGBP	389.90	40.50	740	1.1	63.2	61.0	Y315M3-8 110Kw	4000	2200×1410×1665	250	200
	600.10	40.00		2.4	73.7	71.6	Y355M1-8 132Kw
	799.90	38.50		2.9	76.3	95.6	Y355M2-8 160Kw
4/3C-AH	57.60	39.70	1900	3.2	50	12.45	Y180M-2 22Kw	263	843×584×516	102	76
	108.00	37.60		4.2	66	16.76	Y200L1-2 30Kw
	154.80	33.20		5.5	70.5	19.82	Y200L-4 30Kw
4/3C-AH	61.20	44.00	2000	3.6	50	14.67	Y200L1-2 30Kw	263	843×584×516	102	76
	108.00	42.00		4.5	65	19
	158.40	37.10		6.0	74	22.54
6/4D-AH	122.40	48.00	1400	3.7	50	32	Y250M-4 55Kw	626	1021×812×668	152	102
	226.80	44.00		4.8	65	41.81
	331.20	38.50		6.5	68	51.07

2. Chengzheng mining machinery - CZJ/CZG Series

Type	Speed N (r/min)	Capacity Q (m³/h)	Head H (m)	Efficieney η (%)	Matingmotor (Kw)	Speed N (r/min)	Capacity Q (m³/h)	Head H (m)	Efficieney η (%)	Matingmotor (Kw)
Type	Speed N (r/min)	Capacity Q (m³/h)	Head H (m)	Efficieney η (%)	Matingmotor (Kw)	Speed N (r/min)	Capacity Q (m³/h)	Head H (m)	Efficieney η (%)	Matingmotor (Kw)
100CZJ-A33	1480	205.0	38.0	69	30~55	980	135.7	16.7	68	11~15
150CZJ-A50	980	380.0	40.0	75	55~175	730	283.1	22.2	74	22~45
200CZJ-A58	980	715.0	54.0	79	110~200	730	532.6	30.0	77	55~90
200CZJ-A60	980	740.0	58.0	80	132~250	730	551.2	32.2	78	75~110
150CZG-740	980	600.0	90.0	70	200~315	740	453.1	51.3	67	132~160

Welcome to contact us for model selection, quotation, and professional power plant pump solutions.
