3L43WC, L51LD
NANTONG YALIAN
Parameter:
flow capacity: 19.4m3/min
rotary speed: 1450 rpm
medium temperature: 20℃
pressure rise: 49Kpa
complete with :
motor output: 30kw, IP55, 380V
protection: class F
medium density : 1.2kg/m³
inlet and outlet silencer
flexible connector
check valve
safety valve (pressure gauge and switch)

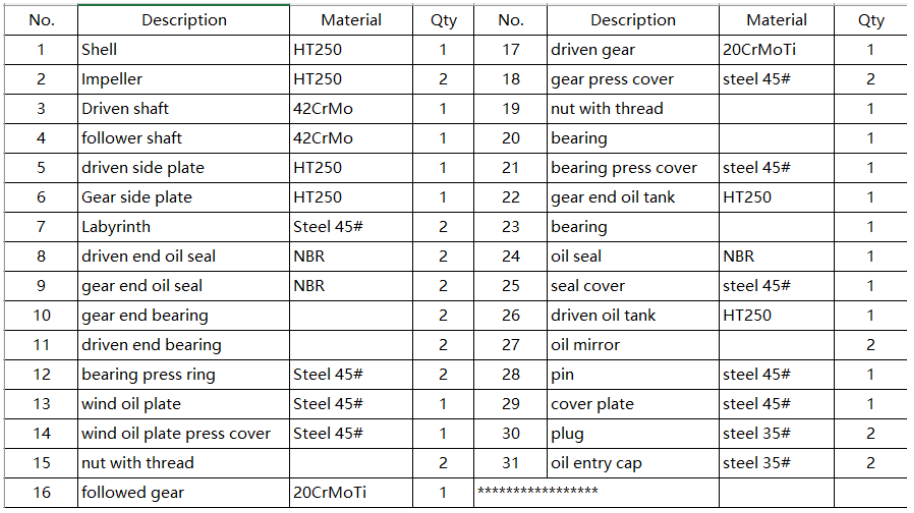

How about the material of the fan? Let's take an example as following:
If you have any different comment on the above material, welcome to let us know.
How to install or replace? Is there enough space for that?

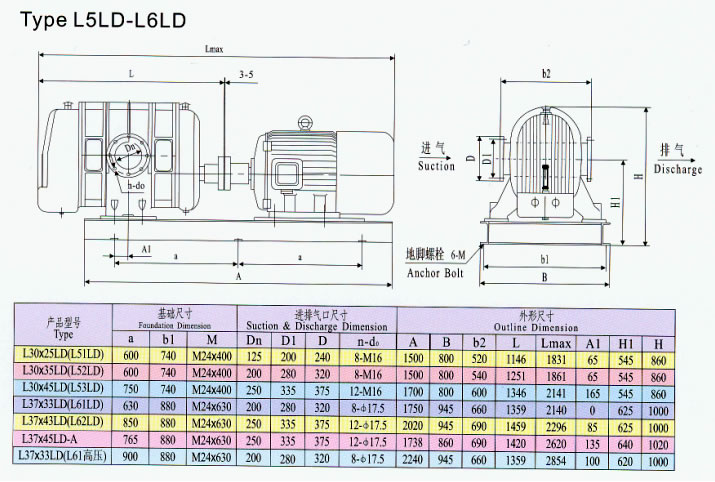

Let's check mount dimension as following:
Parameter:
flow capacity: 19.4m3/min
rotary speed: 1450 rpm
medium temperature: 20℃
pressure rise: 49Kpa
complete with :
motor output: 30kw, IP55, 380V
protection: class F
medium density : 1.2kg/m³
inlet and outlet silencer
flexible connector
check valve
safety valve (pressure gauge and switch)
How about the material of the fan? Let's take an example as following:
If you have any different comment on the above material, welcome to let us know.
How to install or replace? Is there enough space for that?
Let's check mount dimension as following:
