JL2002-J3

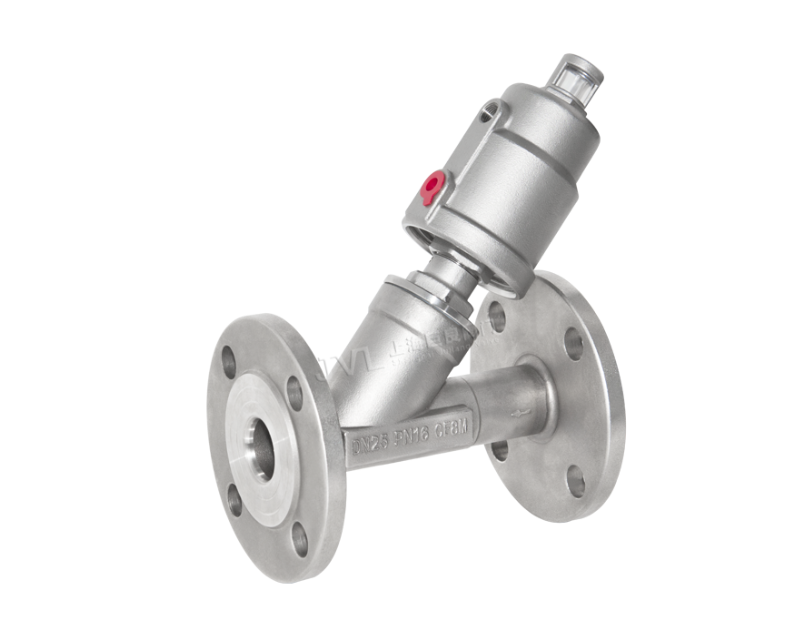

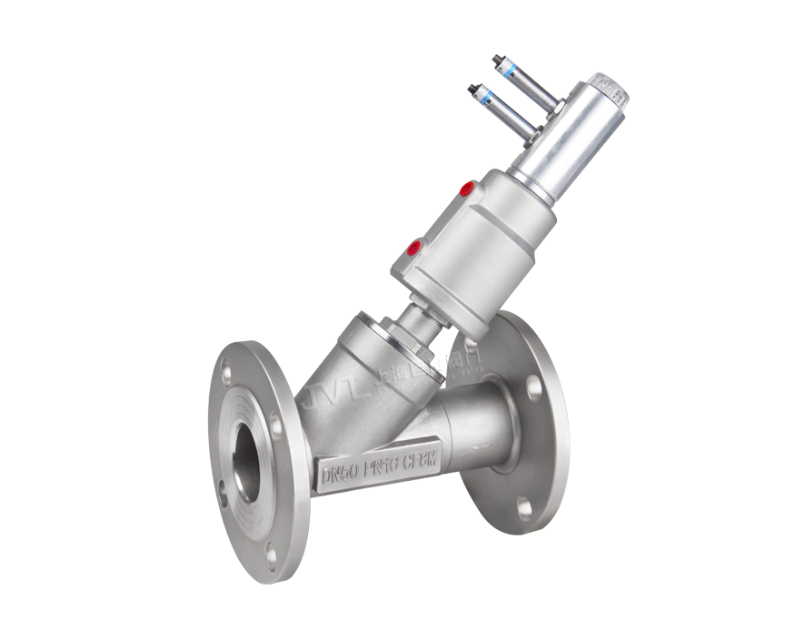

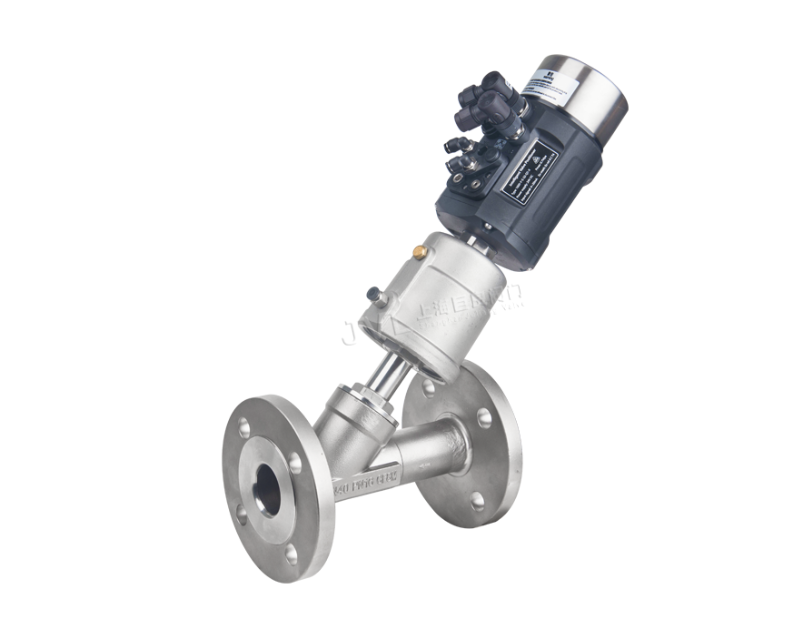

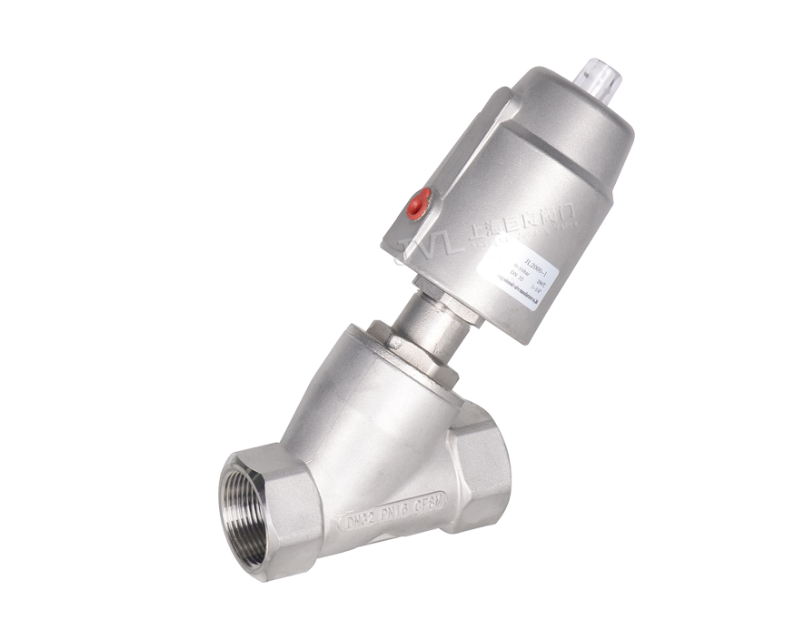

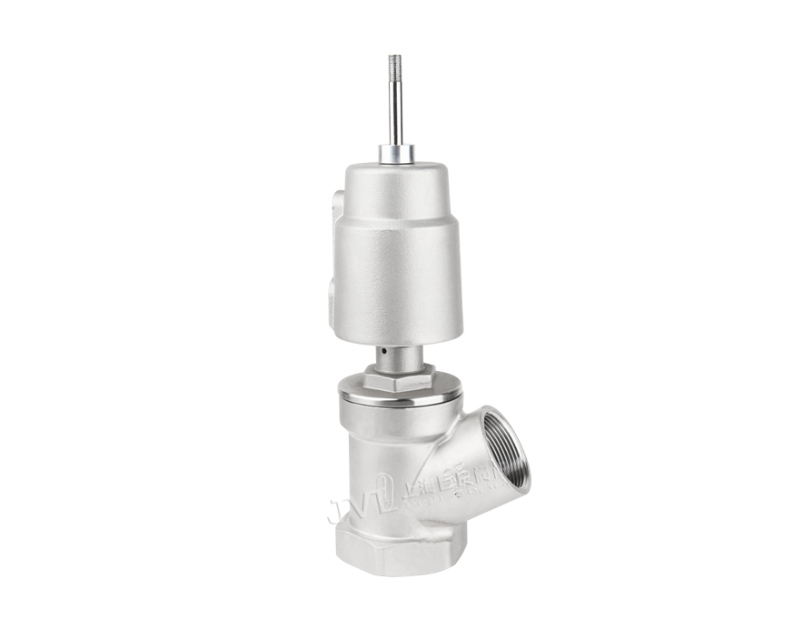

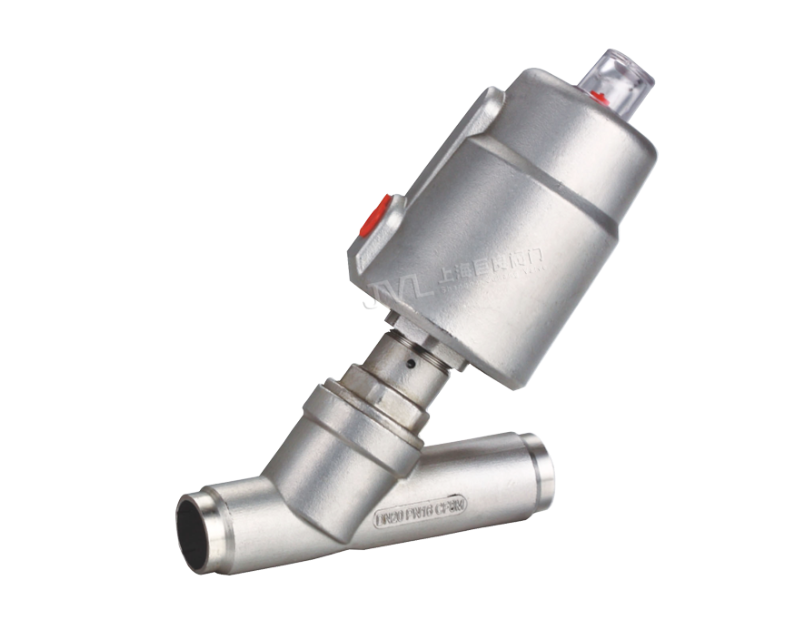

ANGLE SEAT VALVE
Pneumatic angle seat valve is a guided angle seat valve operated by a single acting pneumatic actuator with spring safety protection. This type of valve has various characteristics, including space saving, high flow rate, low flow resistance, no water hammer, ultra long service life, automatic stem calibration, self-lubricating, and maintenance free. Pneumatic angle seat valves are suitable for various medium, such as water, alcohol, oil, fuel, steam, neutral gases or liquids, organic solvents, and acid-base solutions. Pneumatic angle seat valve is an efficient, reliable, and durable valve suitable for various industrial and fluid control fields.
SPECIFICATION
| Nominal diameter | DN10～100mm |
| Nomial pressure | 1.0~1.6Mpa (If higher pressure is required, please specify when placing order) |
| Valve body material | SS304 (P), SS316 (R) |
| Sealing material | PTFE (F), Polyphenylene (PPL) |
| Medium temperature | W1: -20～80℃ W2: -20～150℃ (If higher temperature is needed, please specify when placing order) |
| Ambient temperature | Standard type: -20～80℃ |
| Connection mode | Female thread, Flange, Weld, Clamp |
| Air source pressure | Double acting, Single acting: 4～8bar |
| Cylinder selection | Plastic actuator (2001), Stainless steel actuator (2002) |
| Cylinder form | Double acting, Single acting (Spring return) |
| Control mode | Switch type, Regulating type |
MODEL NAMING METHOD
JL-2001-J3-C4-F-16-P-100-E1- -W2-B1- -
JL-2002-J3-C4-F-16-P-100-E1- -W2-B1- -
| JL | Brand code |
| 2001/2002 | 2001：Plastic actuator 2002：Stainless steel actuator |
| J3 | Angle seat valve |
| C4 | Flange |
| F | PTFE |
| 16 | PN |
| P | SS304 |
| 100 | DN |
| E1 | Single action normally closed |
| Anti explosion class | |
| W2 | -20~150℃ |
| B1 | 3/2 Solenoid valve |
| Attahment selection |
