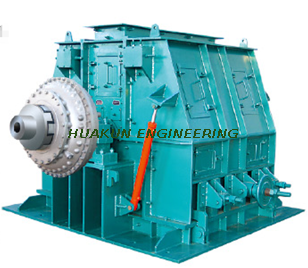

PCXK0806
model | dia Rotor (mm) | rotary (r/min) | inlet dimension (mm) | input (mm) | output (mm) | capacity (t/h) | power of motor (kw) |
PCXK0806 | 800*600 | 1480 | 350*800 | 100 | ＜8 | 25-35 | 45 |
Performance characteristics：
1. There is no sieve plate, which overcomes the problem of boring and high humidity.；
2. The rotor can be reversed to make the hammer head and the crushing plate wear evenly,
reducing the frequency of replacement of wearing parts when the machine is shut down；
3. Synchronously adjust the rhythm up and down, the gap of the discharge opening is adjustable,
the discharge size is uniform, the output is large, and the energy consumption is low；
4. The crushing chamber is easy to open, easy to replace the wearing parts, and the large
machine adopts hydraulic opening device；
5. Large rotor, short pin shaft, combined hammer head are used, and the hammer heads are
arranged in a spiral line, and the air volume is small；
