NW D N NY HGS HGR

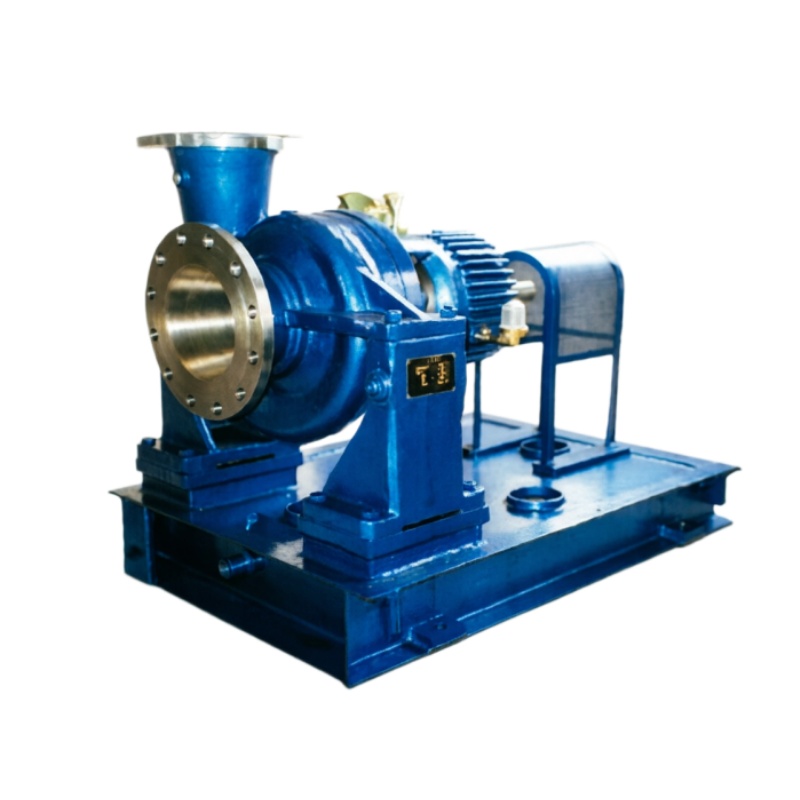

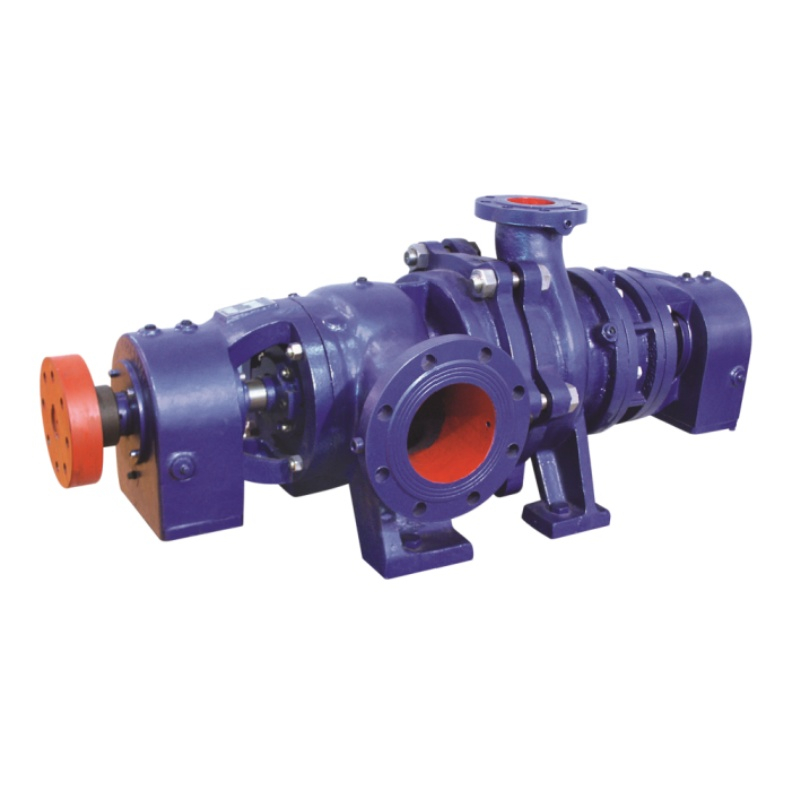

Functions of Drain Pump
Working Medium Recovery: Recover condensate from steam pipelines, heaters, cylinders and other components, reduce water supplement loss, and improve cycle thermal efficiency.
Safety Protection: Timely drain accumulated water to avoid water hammer and corrosion of cylinders/pipelines, ensuring the vacuum degree of the steam turbine and equipment safety.
System Regulation: Cooperate with frequency conversion and regulating valves to stabilize the water level of the heater and adapt to the variable load operation of the unit.
Application Scenarios
Application Position | Medium Characteristics | Destination | Configuration Points |
Low Pressure Heater (LP Heater) | Saturated water with temperature ≤ 135℃ | Water supply pipe at the outlet of the current stage / Next stage LP Heater | Segmental multistage pump, one in use and one standby |
Air Heater | Warm water at 60–100℃ | Inlet of LP Heater / Condensate header | Small flow rate, low head, inlet self-flow |
Boiler / Main Steam Pipeline | Start-up drainage, condensate with unstable parameters | Drainage expansion vessel / Condenser | Used for start-up and shutdown conditions, switched after parameters stabilize |
Main Manufacturers & Product Features
Manufacturer | Core Series | Applicable Temperature | Anti-cavitation Performance | Structural Features | Typical Application |
|---|---|---|---|---|---|
Kaiquan Pump | NW | ≤135℃ | with inducer + CFD | Segmental multistage | Mainstream thermal power plants |
Zhonglian Pump | D | ≤80℃ | with inducer | Segmental multistage | Captive / energy-saving power plants |
Shenyang Pump | HGS/NY | ≤320℃ | Single-stage / two-stage horizontal | High-temperature / HP heater drainage |
Kaiquan Pump
Kaiquan NW Series LP Heater Drain Pump handles saturated condensate water up to 135℃. Anti-cavitation hydraulic design ensures excellent performance for 12.5MW–30MW thermal power plants. Segmental multistage structure provides high flow, high head and high efficiency. Water-cooled jacket and standard mechanical seal ensure reliable operation. Balance disc reduces axial pulsation for stable running.
Model | Rated Flow (m³/h) | Rated Head (m) | Efficiency (%) | Power (kW) | NPSHr (m) |
80NW-57×2 | 43 | 100 | 45 | 30/37 | 2.3 |
100NW-44×2 | 43 | 80 | 55 | 22 | 1.8 |
125NW-44×3 | 64 | 124.5 | 58 | 45 | 1.8 |
150NW-53×2 | 70 | 106 | 58 | 37 | 2 |
150NW-58×3 | 60 | 160 | 59 | 55 | 1.7 |
250NW-44×2 | 198 | 98 | 73 | 90 | 3 |
300NW-50×4 | 450 | 192 | 65 | 355 | 3.3 |
Zhonglian Pump
Zhonglian D-type horizontal multistage centrifugal pump is a single-suction, segmental pump for clean water or similar liquids, with temperature ≤80℃. It features high efficiency, wide performance range, stable operation, low noise, long service life and easy installation & maintenance.
Model | Rated Flow (m³/h) | Rated Head (m) | Efficiency (%) | Power (kW) | NPSHr （m） |
D6-25×2~12 | 3.75~7.5 | 50~300 | 36~49.5 | 3~18.5 | 2.2~3.2 |
D12-50×2~10 | 7.5~15 | 100~500 | 45~52 | 5.5~37 | 2.5~3.5 |
D25-50×2~10 | 15~30 | 100~500 | 58~65 | 11~75 | 2.7~3.8 |
D46-50×2~10 | 30~55 | 100~500 | 65~72 | 18.5~132 | 3.0~4.2 |
D85-45×2~9 | 60~100 | 90~405 | 70~76 | 37~250 | 3.5~4.8 |
D155-30×2~10 | 120~180 | 60~300 | 72~78 | 45~315 | 4.0~5.5 |
D280-43×2~8 | 220~320 | 86~344 | 75~80 | 90~710 | 4.5~6.0 |
Shenyang Pump
