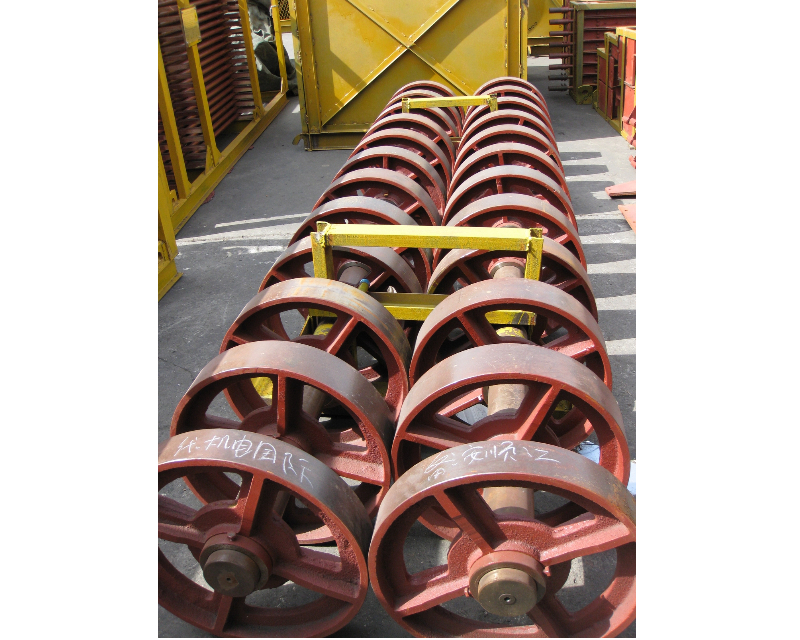

Driven Shaft - Chain Grate

The driven shaft is one assembly part. Our manufacute can supply the whole set or parts of it.

The material can be fulfilled to any requirement.

The reference supplying list for one whole set follower shaft as following:

- Shaft - 1ea  ( material steel 45# )

- Follower pulley - 10ea ( material HT150)

- Locating collar -24ea (material steel 45#)

- Backstop - 4ea (material HT150)

- Bolt M12x30 - 48ea (material steel 33H)

- Bolt M20x45 - 4ea (material steel 33H)

- Stud Bolt M20x180 - 16ea (material steel 35#)

- Nut M20 - 32ea (material steel 35#)

- Gasket 20 - 32ea (material 140HV)

- Gasket 20 - 16ea (material Q235-A)

- Side follower pulley - 2ea (material HT150)
