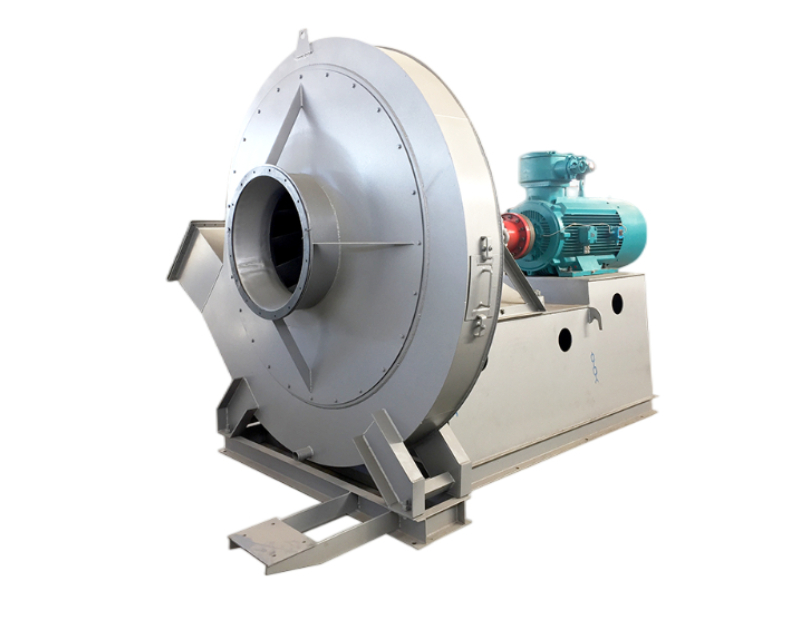

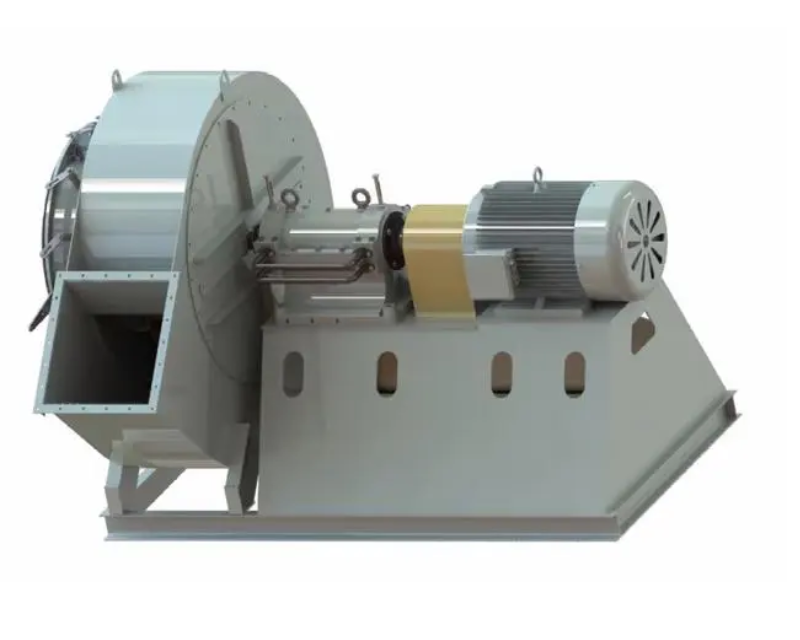

G4-73 CENTRIFUGAL FAN

G4-73 type boiler air blower is suitable for steam boilers with a capacity of 2~670t/h. If there are no special requirements, it can also be used for mine ventilation and general ventilation. The transported medium is air, and the temperature does not exceed 80°C.
Availability:
Quantity:

Product description:

1. Fan type:  The air volume of the G4-73 boiler fan is 10696-952530m³/h, and the wind pressure is 615-8302Pa, Power is 5.5kw-1600kw.


2. Single in suction, the types include №8D, №9D, №11D, №12D, №14D, №16D, №18D, №20D, №22D, №25D, №28D, №29.5D, seventeen types in total.


The Parameter here as reference:

No.

Speed of   main shaft (r/min)

Full   Pressure (Pa)

Flow   (m3/h)

Power   (kw)

8D

1450

2104~1400

16156~30993

18.55

9D

960~1450

775~2668

15229~44128

11~37

10D

730~1450

553~3301

15886~60533

7.5~55

11D

730~1450

669~4003

21144~80570

11~90

12D

730~1450

797~4777

25661~104600

15~132

14D

730~1450

1086~6541

43591~166100

37~315

16D

580~960

895~3709

51699~164150

45~185

18D

580~960

1133~4710

73610~233730

75~280

20D

580~960

1400~5837

100970~320610

110~520

22D

480~960

1216~6865

116000~434000

140~850

25D

480~730

1579~5138

171000~484000

165~700

28D

375~730

1205~6400

187000~680000

320~1250

29.5D

596~745

3236~7218

348000~810000

800~1600
