Body material: A216-WCB
Connection type: Butt Weld
Design pressure: 263bar
Design Temperature: 300℃
It can be fulfilled code ASME B 16.34 CLASS2500 or API598.
End to End dimensions: ASME B16.10
Buttwelding End dimensions: ASME B16.25
Hydrostatic Test pressure: ASME B16.34

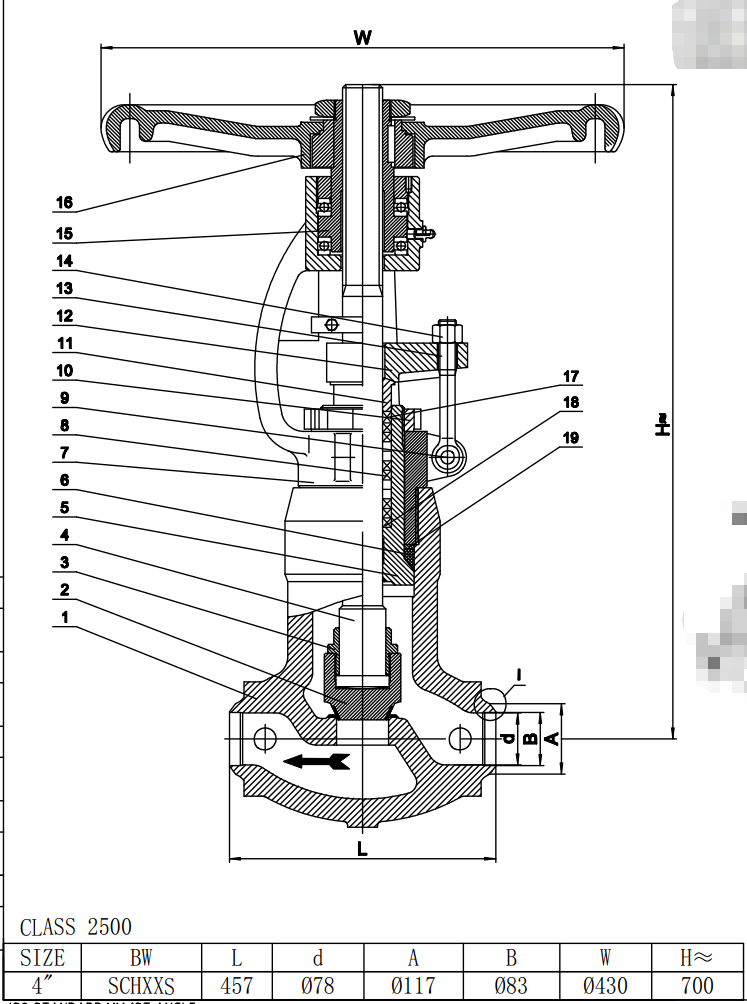

Reference drawing here is:
Body material: A216-WCB
Connection type: Butt Weld
Design pressure: 263bar
Design Temperature: 300℃
It can be fulfilled code ASME B 16.34 CLASS2500 or API598.
End to End dimensions: ASME B16.10
Buttwelding End dimensions: ASME B16.25
Hydrostatic Test pressure: ASME B16.34
Reference drawing here is:
