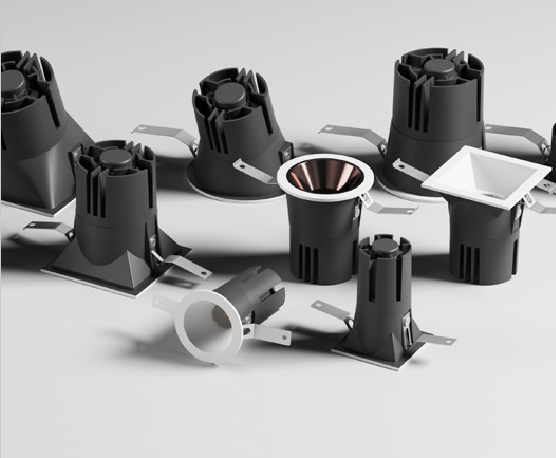

HERA SPOT

Hera is a family of recessed LED spots that comes in a wide range of different sizes and glare-limiting reflector finishes.
Symmetrical or asymmetrical optics - either fixed or tiltable - are available.
The variety of luminous flux, appearance options and dimming protocols present Hera as an unbeatable option for architectural lighting applications.

Availability:

Quantity:



Inquire Add to Basket

Model:
HERA
Brand:
SAT

more related product to see our light website: https://www.chalmax-light.com/LED-Technology-pl3981329-p3.html

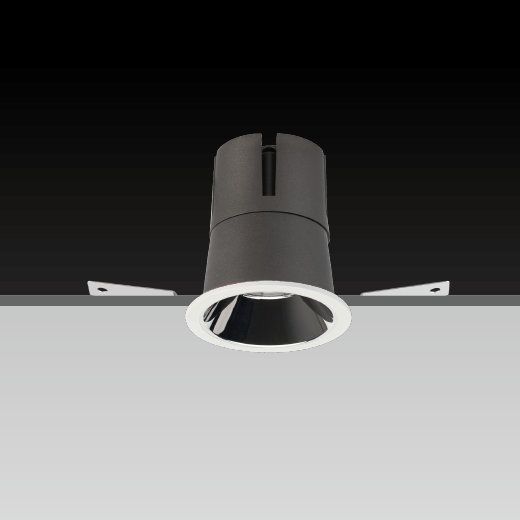

General Information	DDI040Y	DDI055Y	DDI065Y	DDI075Y	DDI085Y
Optics	10°/15°/24°	15°/24°/36°	15°/24°/36°	15°/24°/36°	15°/24°/36°
	Fixed	Fixed	Fixed	Fixed	Fixed
System Power (Watt)	5W	5W	7W	9W	15W
System Luminous flux(lm)	250lm	300lm	500lm	680lm	1050lm
Driver parameters	36V/100mA	36V/110mA	36V/160mA	36V/210mA	36V/360mA
Cut out (mm)	∅40	∅55	∅65	∅75	∅85

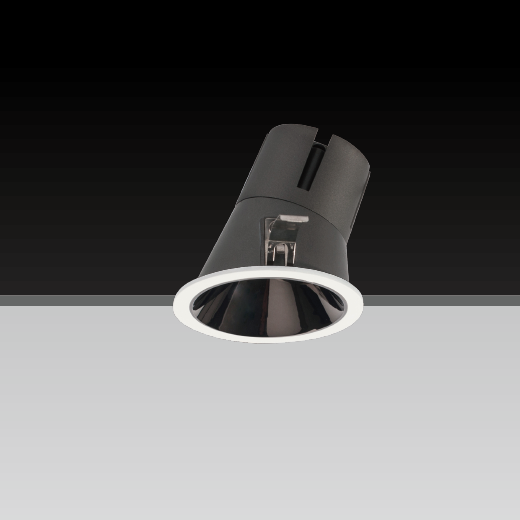

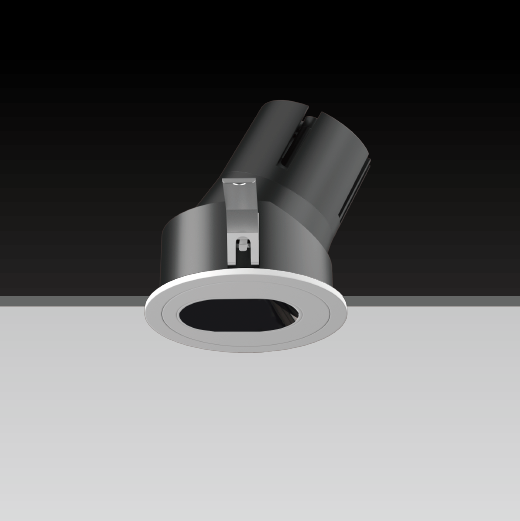

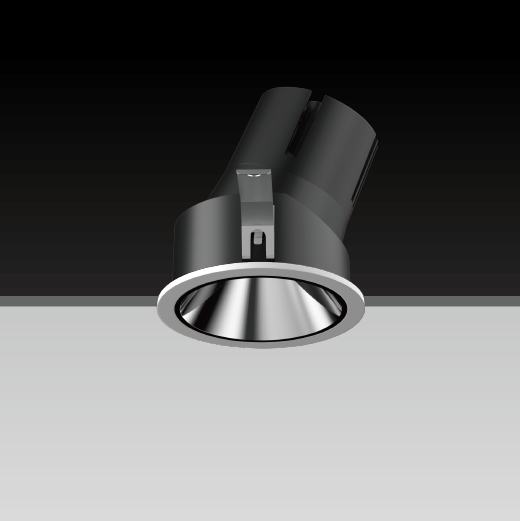

General Information	DDI065X	DDI075X	DDI085X	DSI075X	DSI075T
Optics	15°/24°/36°	15°/24°/36°	15°/24°/36°	15°/24°/36°	15°/24°/36°
	Fixed	Fixed	Fixed	Adjustable	Adjustable
System Power (Watt)	5W	7W	9W	7W	7W
System Luminous flux(lm)	280lm	500lm	700lm	500lm	420lm
Driver parameters	36V/110mA	36V/160mA	36V/210mA	36V/160mA	36V/160mA
Cut out (mm)	∅65	∅75	∅85	∅75	∅75

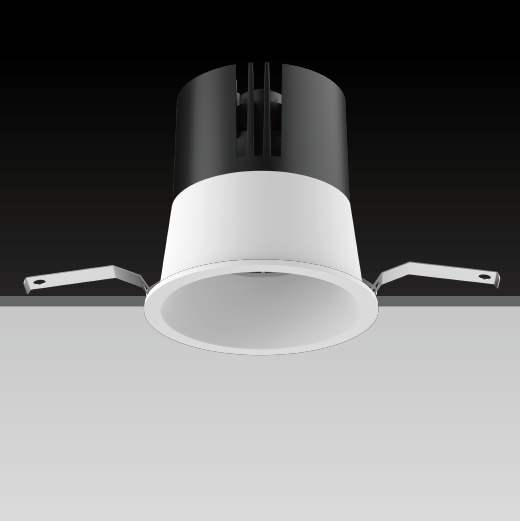

General Information	DDI040D	DDI055D	DDI065D	DDI075D	DDI085D
Optics	10°/15°/24°	15°/24°/36°	15°/24°/36°	15°/24°/36°	15°/24°/36°
	Fixed	Fixed	Fixed	Fixed	Fixed
System Power (Watt)	5W	5W	7W	9W	15W
System Luminous flux(lm)	250lm	300lm	500lm	680lm	1050lm
Driver parameters	36V/100mA	36V/110mA	36V/160mA	36V/210mA	36V/360mA
Cut out (mm)	∅40	∅55	∅65	∅75	∅85

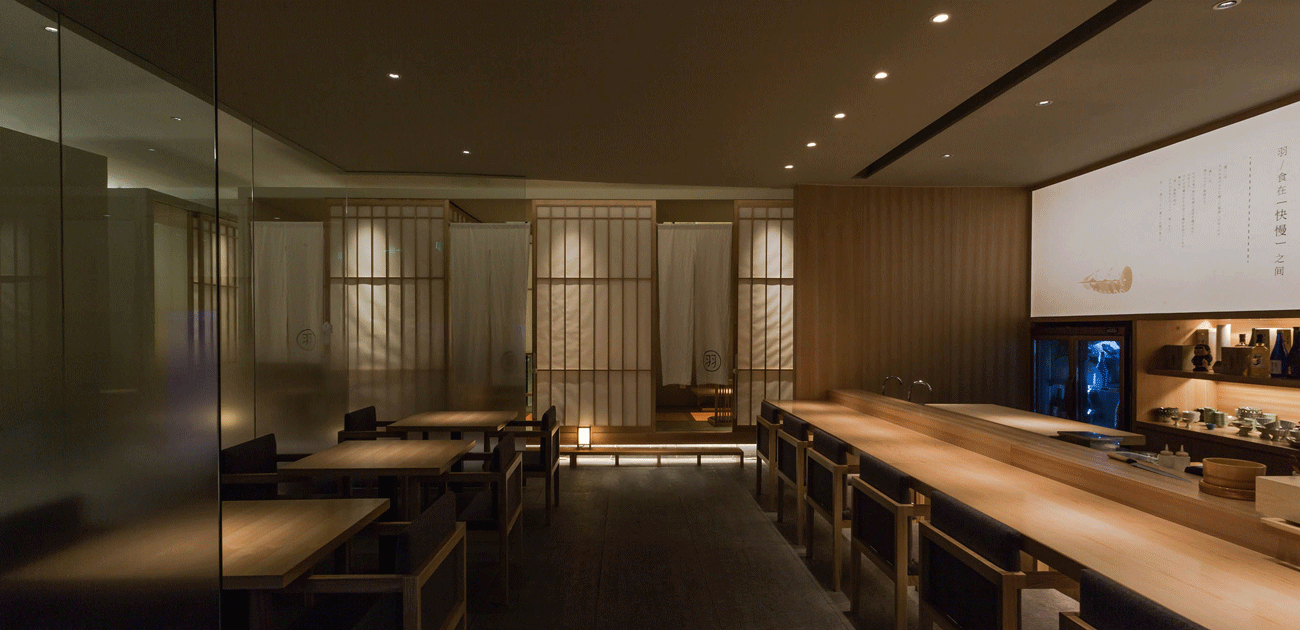

HERA 背景图

HERA SPOT
