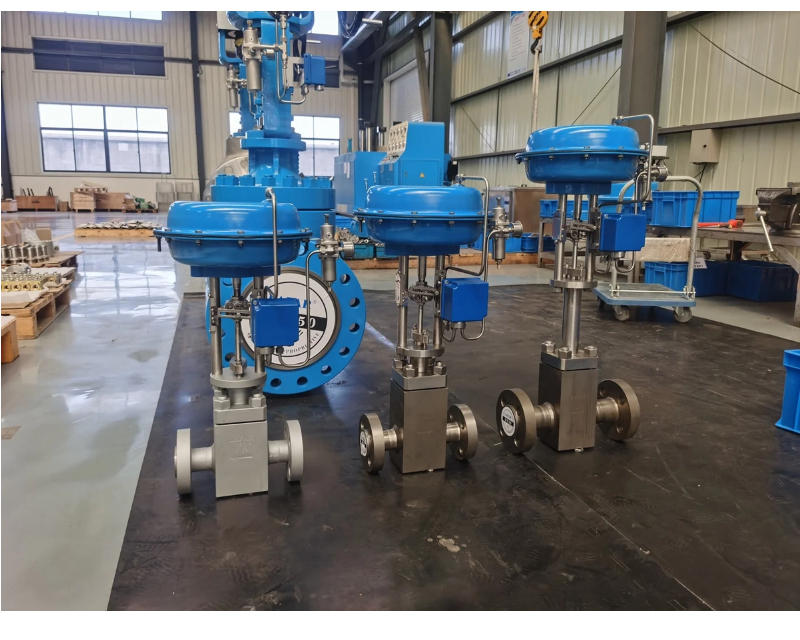

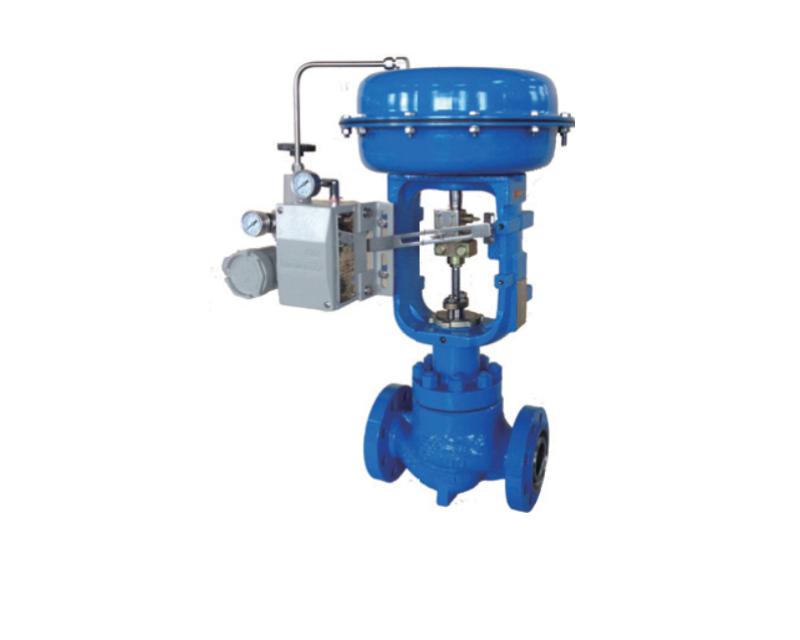

High pressure cage guided control valve has multiple types of valve trim, which can be widely used to reduce noise, pressure and flow conditions, it can effectively reduce the impact of cavitation and flashing. It is a highly demanding control elements in industrial process control.
Parameters of control valves:
Trim features: high pressure cage guided
Balanced or unbalanced trim structure
Cage single or double-seat structure
Straight-through type / angle type
Bonnet type: standard, heat dissipation, cryogenic and bellows type
Flow characteristic: equal percentage, Linear or Quick open
Size: DN20-400(1.5"-16")
Pressure class: PN15\25\42Mpa(ANSI 900\1500\2500LB)
Leakage class: ASME B16.104 IV, V(standard type metal seat) or VI (standard type soft seat)
Pipe connection type: flange, Butt welding type
Applicable temperature range: -196C° ~ 580C°
Actuator type: pneumatic diaphragm actuator, pneumatic piston actuator, electric actuator
