JGD-20
CHUANGJIE

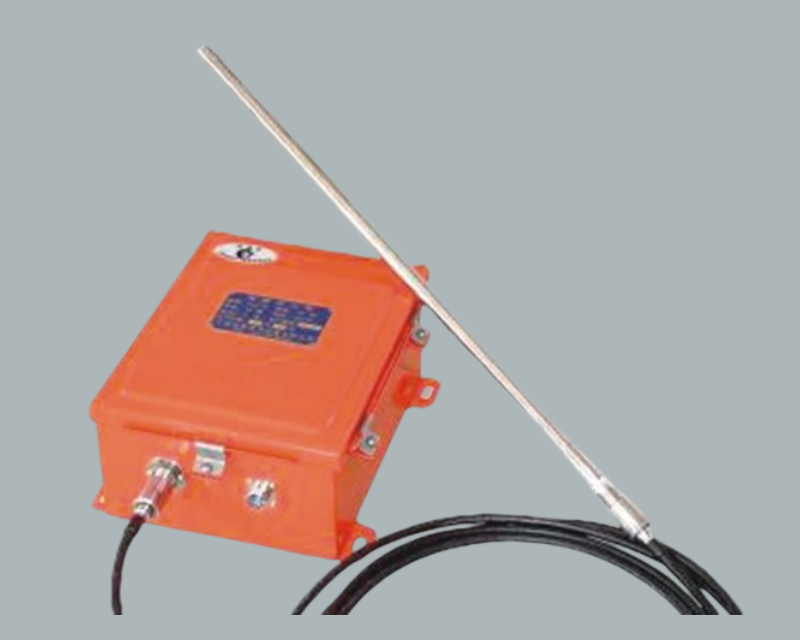

The product tested data:
DESCRIPTION | JGD-20 | |
High-Power Ignition Device | Spark Engergy（J) | 20 |
working voltage（V） | AC220V±10% | |
Current input（A） | 5 | |
Spark Frequency（HZ） | 2500 | |
Service Life（time） | above 200,000 under normal ignition | |
including:
JDQ series high-energy ignition guns are made of high-temperature resistant stainless steel, semiconductor ceramic surface discharge structure, well sealing, anti-corrosion, and have the characteristics of high ignition energy, coking resistance, pollution resistance, and long life.
The product tested data:
model | connection | OD mm | useful |
JDQ-18-L2310 | M18 x1 | dia 18 | Oil or Gas ignition |
Outside shape:
JDL type high-voltage shielded cable is used to connect high-energy igniters and ignition guns to achieve reliable and low-loss transmission of ignition energy, and can shield stray radiation of ignition energy to prevent electromagnetic interference to other electronic equipment.
The product tested data:
model | Central cable resistance Ω | voltage resistance V | min. bending radius | connection |
JDL-6000 | ≤0.02 | ＞8000 | 100mm | M18 x 1 |

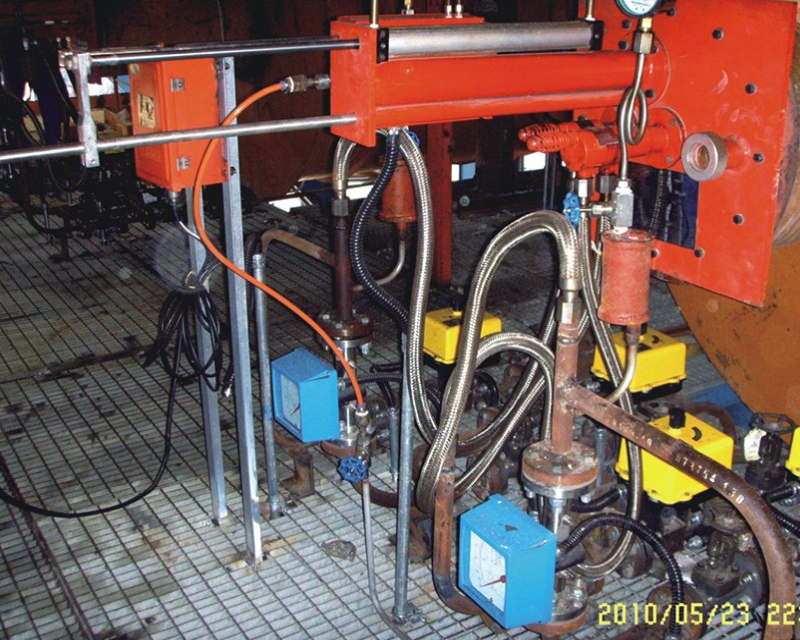

The site whole set device installation photo:
