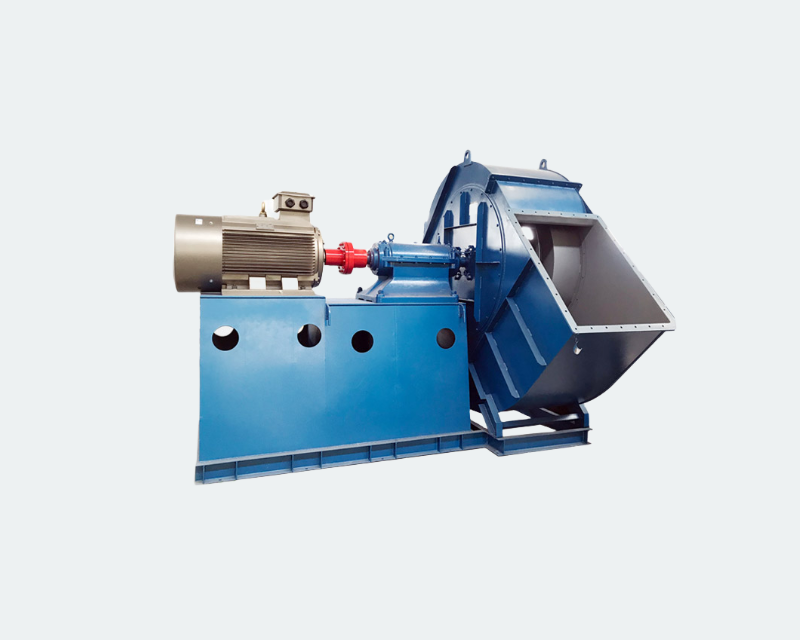

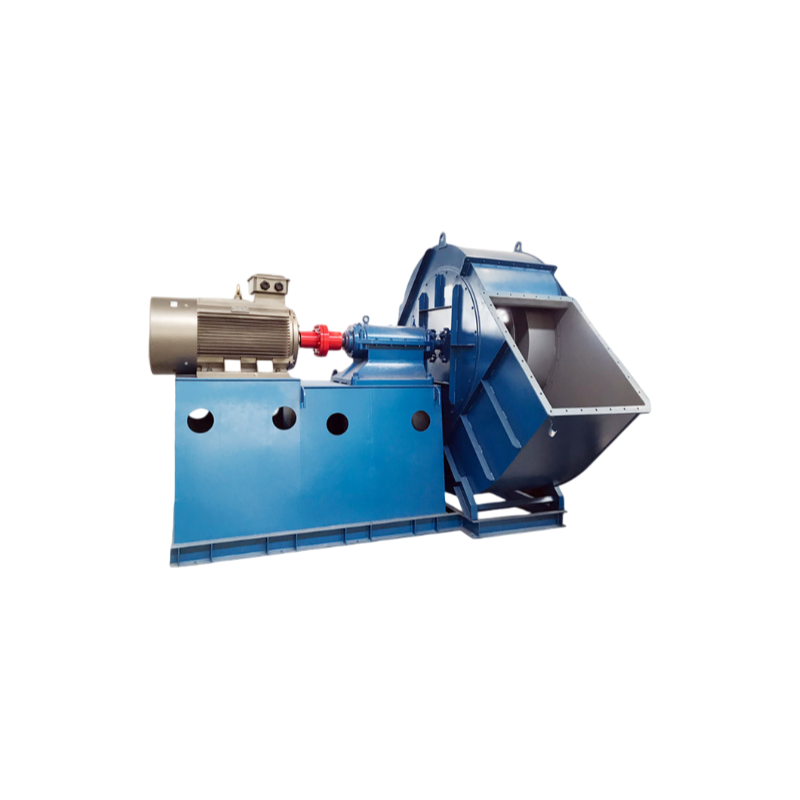

Y8-39, Y9-38
Fan type
1. This fan is made of single suction, and the codes are No4, No4.5, No5, No5.6, No6.3, No7.1, No8, No9, No10, No11.2, No12.5, No14, No16, thirteen codes in total.
2. This fan can be made into two forms: clockwise rotation and counterclockwise rotation. Looking at the fan from the transmission part, if the impeller rotates clockwise, it is called a right-hand fan and is represented by the right. Otherwise, it is called a left-hand fan and is represented by the left.
3. The outlet position of the fan is expressed by the outlet angle of the casing. Both right-hand and left-hand fans can be made into six angles: 0°, 45°, 90°, 135°, 180°, and 225°.
Take the model Y9-38 as example, here the parameters you can choose:
| Code | rotary speed (r/m) | Full pressure (Pa) | Flow (m3/h) | completed motor (kw) | weight |
| 4 | 2900 | 2275 | 3297 | 5.5 | 131 |
| 2334 | 3846 | 7.5 | |||
| 2334 | 4396 | ||||
| 2294 | 4945 | ||||
| 2226 | 5495 | ||||
| 4.5 | 2900 | 2873 | 4694 | 11 | 155 |
| 2951 | 5477 | ||||
| 2961 | 6259 | ||||
| 2912 | 7042 | ||||
| 2814 | 7824 | ||||
| 5 | 2900 | 3550 | 6439 | 15 | 173 |
| 3648 | 7513 | 18.5 | |||
| 3658 | 8586 | ||||
| 3589 | 9659 | ||||
| 3481 | 10733 | ||||
| 5.6 | 2900 | 4452 | 9047 | 30 | 280 |
| 4570 | 10555 | 37 | |||
| 4579 | 12063 | ||||
| 4511 | 13571 | ||||
| 4364 | 15079 | ||||
| 6.3 | 1450 | 1402 | 6441 | 5.5 | 306 |
| 1441 | 7514 | 7.5 | |||
| 1451 | 8588 | ||||
| 1422 | 9661 | ||||
| 1372 | 10735 | ||||
| 2900 | 5639 | 12882 | 45 | ||
| 5786 | 15029 | 55 | |||
| 5805 | 17176 | 75 | |||
| 5707 | 19323 | ||||
| 5521 | 21470 | ||||
| 7.1 | 1450 | 1784 | 9219 | 11 | 563 |
| 1863 | 10756 | 15 | |||
| 1873 | 12292 | 18.5 | |||
| 1863 | 13829 | ||||
| 1833 | 15366 | ||||
| 1794 | 16902 | ||||
| 1735 | 18439 | ||||
| 8 | 1450 | 2275 | 13189 | 22 | 639 |
| 2363 | 15387 | 30 | |||
| 2373 | 17585 | ||||
| 2363 | 19783 | ||||
| 2334 | 21982 | ||||
| 2285 | 24180 | ||||
| 2206 | 26378 |
