Product Categories & Features
1. Centrifugal Oil Pump
Application: Main oil pump, AC lubricating oil supply pump
Structure: Horizontal single-stage or two-stage centrifugal type
Suitable medium: Turbine oil, lubricating oil
Features: High efficiency, stable pressure, suitable for long-term operation
2. Gear Oil Pump
Application: Auxiliary lubrication pump, oil transfer pump
Structure: Gear type with built-in safety valve
Suitable medium: Lubricating oil, diesel oil
Features: Compact structure, easy installation, low failure rate
3. DC Emergency Lubricating Oil Pump
Application: Emergency oil supply in case of power failure
Drive: DC 220V / 110V (customizable)
Features: Fast start, stable pressure, safe and reliable
4. High-Pressure Jacking Oil Pump
Application: Turbine jacking system
WorGear Oil Pumpking pressure: 16 ~ 31.5 MPa
Features: High pressure, stable flow, precise pressure control
5. Double-Suction Centrifugal Oil Pump
Application: Large-flow lubrication circulation system
Structure: Horizontal single-stage double-suction
Features: Large flow, low noise, easy maintenance
Technical Parameters (General Standard)

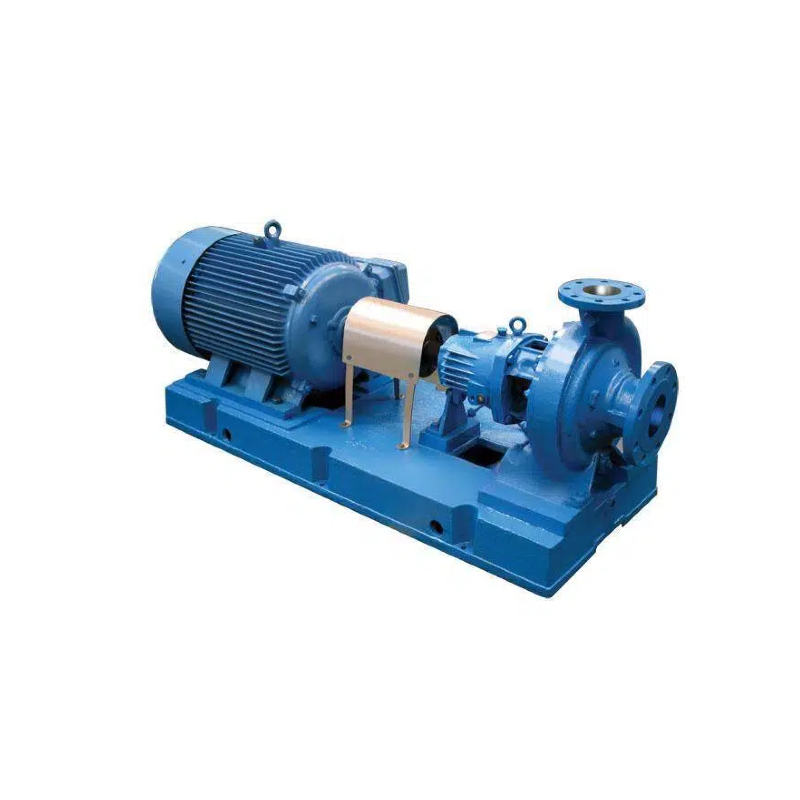

Centrifugal Oil Pump
| Model | Flow (m³/h) | Head (m) | Speed (r/min) |
|---|---|---|---|
| 40AY-type | 6.3–12.5 | 36–43 | 2950 |
| 50AY-type | 12.5–25 | 46–54 | 2950 |
| 65AY-type | 23–35 | 90–105 | 2950 |
| 80AY-type | 35–60 | 46–54 | 2950 |
| 100AY-type | 60–100 | 56–66 | 2950 |
Gear Oil Pump
| Model | Flow (m³/h) | Pressure (MPa) |
|---|---|---|

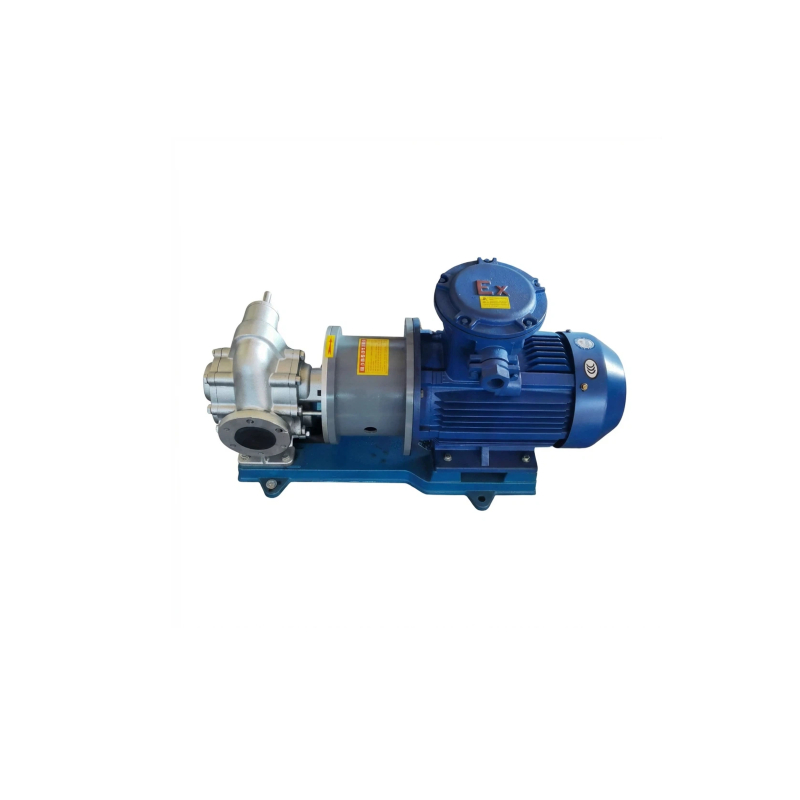

| KCB-type | 3.3–12 | 0.33 |

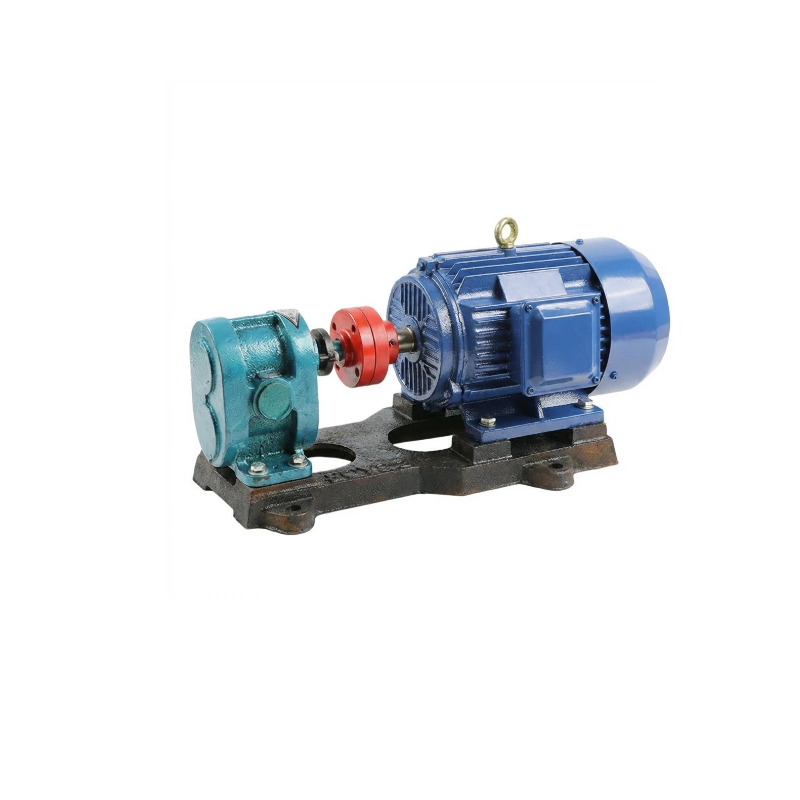

| 2CY-type | 3.3–12 | 0.3–31.5 |
DC Emergency Oil Pump
| Item | Standard Value |
|---|---|
| Voltage | DC 220V |
| Flow | 12–25 m³/h |
| Discharge Pressure | 0.4–0.6 MPa |
High-Pressure Jacking Oil Pump
| Flow (L/min) | Pressure (MPa) |
|---|---|
| 5–10 | 31.5 |
Double-Suction Oil Pump
| Model | Flow (m³/h) | Head (m) |
|---|---|---|
| 150-type | 96–160 | 108–127 |
| 200-type | 143–328 | 108–132 |
| 250-type | 247–470 | 47–84 |
Advantages
Standardized design for global power plant maintenance & replacement
Suitable for thermal power, biomass power, small industrial turbines
Complete series: main pump, AC pump, DC pump, jacking pump
Stable performance, interchangeable with original pumps
Suitable for export, replacement projects and spare parts supply.
