JAS
Product Description

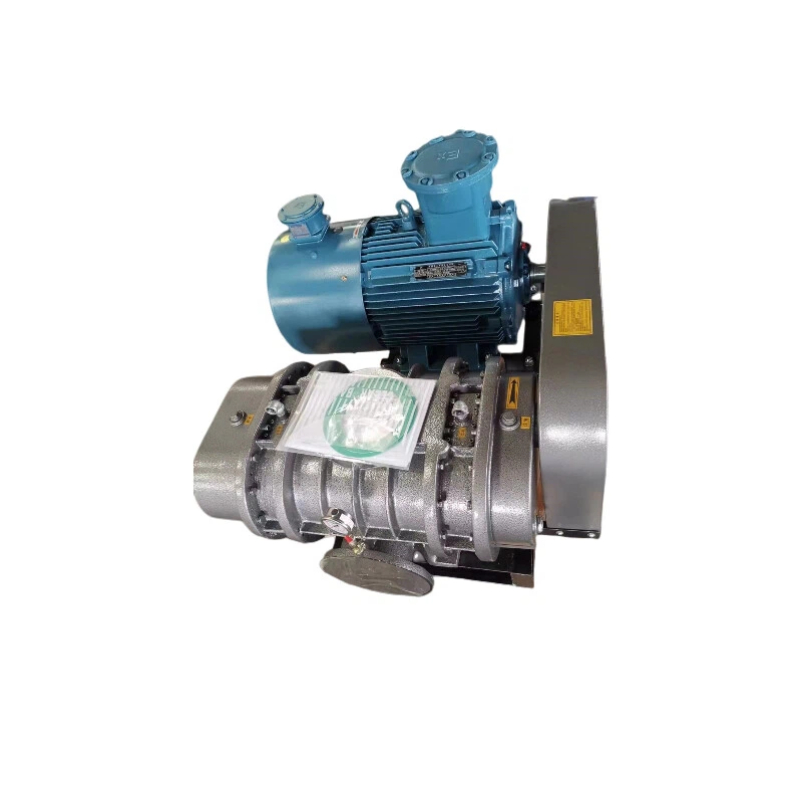

JAS Series Three-Lobe Roots Blower is an integrated, skid‑mounted positive displacement blower with advanced three‑lobed rotor and internal reflux structure. It features stable performance under high pressure, low pulsation, low noise and high volumetric efficiency, widely used in industrial processes requiring continuous and reliable air/gas supply.
This series is delivered as a complete unit including base frame, motor, inlet filter silencer, discharge silencer, safety valve, check valve, pressure gauge and flexible connector. It is ready for installation and operation, greatly reducing on-site construction and commissioning time.
Key Features
Advanced three-lobe cycloid rotor profile, uniform air supply, low vibration
Internal reflux structure for stable performance under high pressure (49–98kPa)
Complete skid-mounted integrated design, easy installation and commissioning
Multiple sealing structures available for clean air or special gas conveying
High volumetric efficiency, energy-saving, low operating cost
Rugged cast iron structure, long service life, suitable for 24/7 operation
Compact layout, small footprint, easy maintenance
Technical Parameters (Data Sheet)
| Model | Flow (m³/min) | Pressure (kPa) | Speed (r/min) | Motor Power (kW) |
|---|---|---|---|---|
| JAS 80 | 3.36–12.5 | 9.8–88.2 | 980–1450 | 2.2–18.5 |
| JAS 100 | 5.2–20.3 | 9.8–88.2 | 980–1450 | 4–30 |
| JAS 125 | 9.6–37.7 | 9.8–88.2 | 740–1200 | 7.5–55 |
| JAS 150 | 13.1–41.0 | 9.8–78.4 | 740–1200 | 11–75 |
| JAS 190 | 16.6–50.2 | 9.8–98.0 | 590–980 | 15–90 |
| JAS 250 | 30.5–100.7 | 9.8–98.0 | 490–740 | 30–160 |
Standard Unit Configuration
Base frame with shock absorbers
Inlet silencer with air filter
Discharge silencer
Safety valve & check valve
Pressure gauge & flexible connector
V-belt drive or direct drive
Motor (IP54, F-class insulation)
Main Applications
Pneumatic conveying of powder, granular and pellet materials
Wastewater treatment aeration and biochemical reaction
Petrochemical, chemical, metallurgical and mining gas supply
Flue gas desulfurization, denitrification and environmental protection systems
Power plant auxiliary air supply and boiler combustion support
Aquaculture oxygenation, grain aeration and industrial process air supply
Why Choose Our JAS Series Roots Blower
Integrated skid-mounted design, plug-and-play, reduces installation cost
Stable high-pressure performance, ideal for 49–98kPa working conditions
Complete model range, covers flow from 3.36 to 100.7 m³/min
Customizable sealing for air, biogas, flue gas and other special media
Mature design, reliable quality, low failure rate, easy maintenance
Professional for industrial and power plant supporting systems
