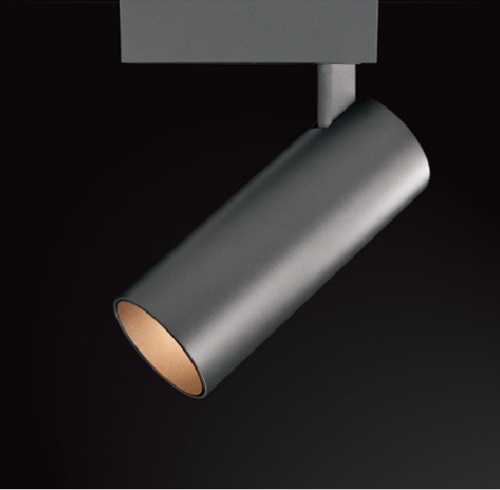

LATOUR STANDARD

Made of high density die-cast aluminum. Standard has been designed for installation on track and ceiling.
Low-glare and a wide variety of optical accessories are the key features of this series.

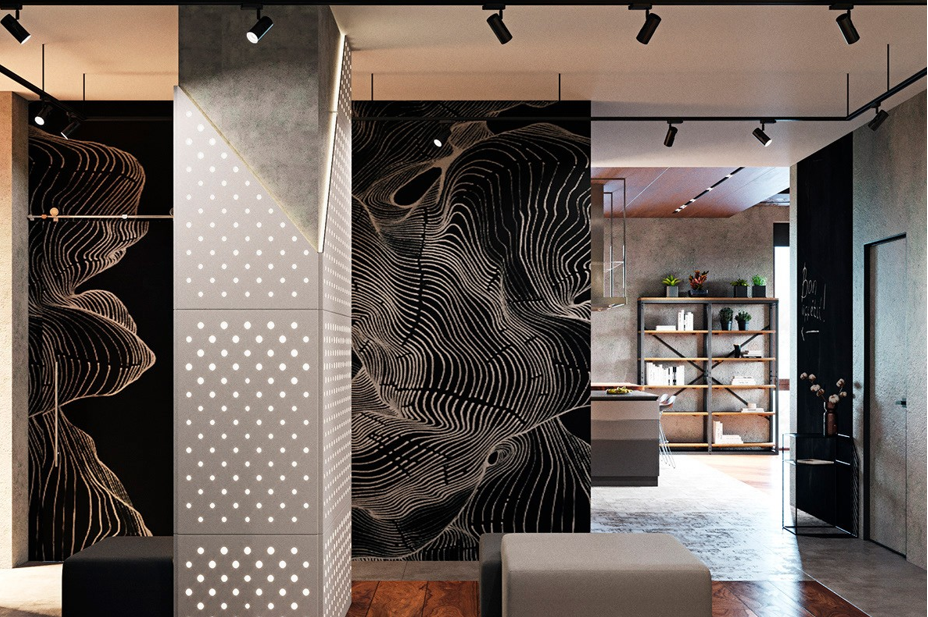

Suitable for high-end restaurants, retail shops, galleries and museums.
more to see our light website: https://www.chalmax-light.com/LED-Technology-pl3981329.html

Availability:

Quantity:



Inquire Add to Basket

Model:
TSL
Brand:
SAT

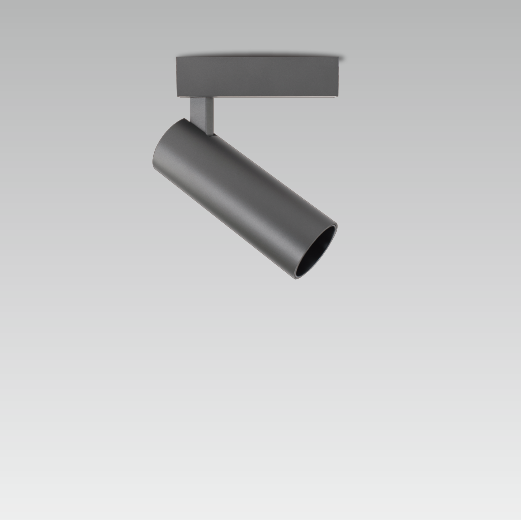

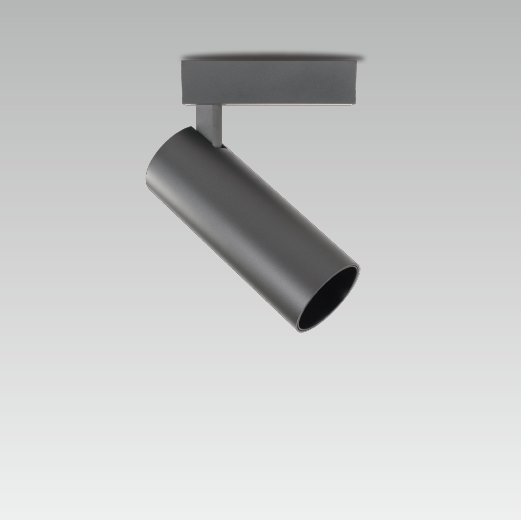

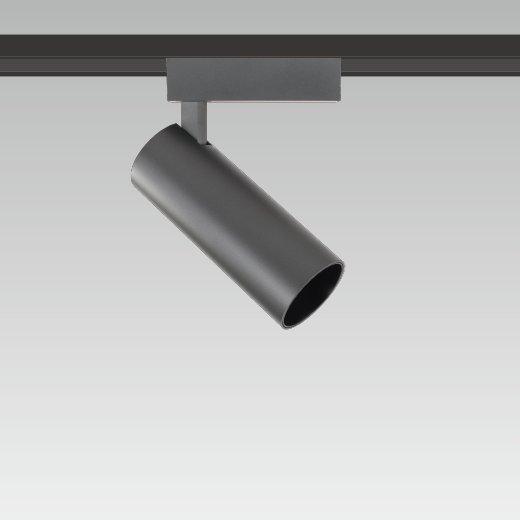

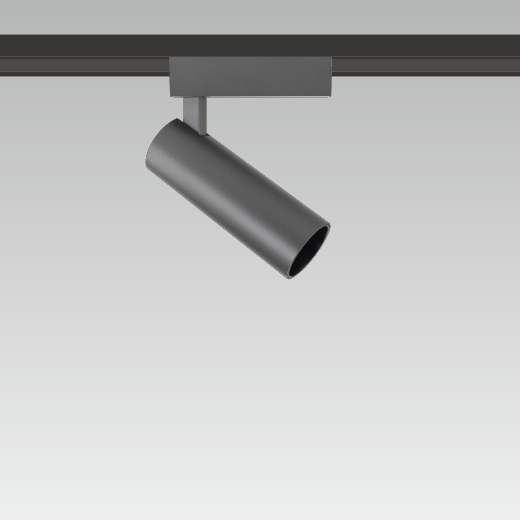

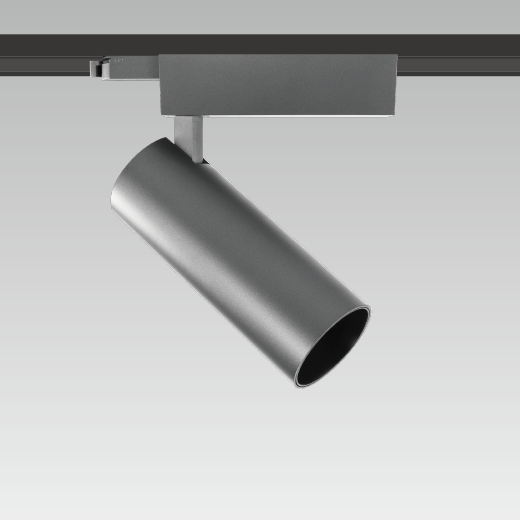

	TSL050X	TSL060X	TSL070X	TSL080X	SAL050X	SAL060X
General Information	track	track	track	track	surface	surface
Optics	15°/24°/36°	15°/24°/36°	15°/24°/36°	15°/24°/36°	15°/24°/36°	15°/24°/36°
System power (Watt)	9W	15W	20W	30W	9W	15W
System Luminous flux (lm)	650lm	1000lm	1500lm	1750lm	650lm	1000lm
Driver parameters	36V/210mA	36V/360mA	36V/480mA	36V/700mA	36V/210mA	36V/360mA
Individual dimmable		●	●	●

Technical Details
Light Source	LED COB
Colour temperature	2700K/3000K/4000K
CRI(Ra/R9)	RA>90/R9>50
Colour Consistancy	SDCM<3
UGR	<16
IP-rated	IP20
Lifetime	>50,000h
Warranty	3 Years/5 Years
Driver	ON/OFF, Phase, 0-10V, Dali
Options	2-Wire 1-Circuit Tarck / 3-Wire 1-Circuit Track / 4-Wire 3-Circuit Track / 6-Wire 3-Circuit Dali Track
