| Quantity: | |
|---|---|
| Main Technical Parameters: | |
| Travel (m): | 16.8m (Max) |
| Blowing Medium: | Compressured air or Steam |
| Travel Speed (m/min): | 0.9~3.5 |
| Rotation Speed (r.p.m): | 9~35 |
| Nozzle Dia (mm): | 12~32 |
| Blowing Radius (m): | ~2 |
| Blowing Angle: | 360° |
| Motoer Specification: | 1.1KW, 1400rpm, 380V, 50Hz |
| Approx. Weight: | 360kg +travel weight |

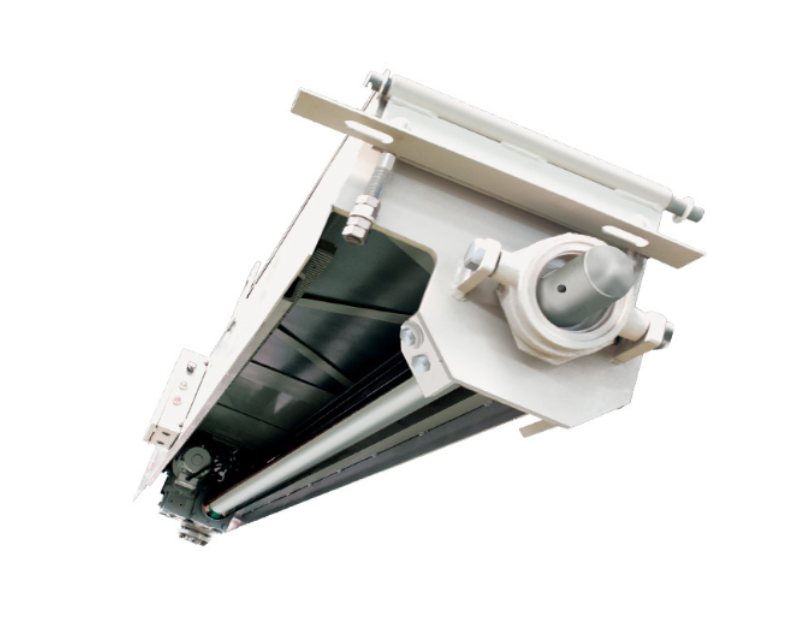

Main Components:
1. Carriage & Motor (Reduction gear box)
2. Valve & Mater Flange
3. Beam
4. Mounting device in the furnace wall
5. Motor cable
6. Front bracket
7. Feed tube
8. Lance tube and nozzle
9. Electrical box & Travel control
10. Spiral phase mechanism
11. Positive air piping system
| Main Technical Parameters: | |
| Travel (m): | 16.8m (Max) |
| Blowing Medium: | Compressured air or Steam |
| Travel Speed (m/min): | 0.9~3.5 |
| Rotation Speed (r.p.m): | 9~35 |
| Nozzle Dia (mm): | 12~32 |
| Blowing Radius (m): | ~2 |
| Blowing Angle: | 360° |
| Motoer Specification: | 1.1KW, 1400rpm, 380V, 50Hz |
| Approx. Weight: | 360kg +travel weight |
Main Components:
1. Carriage & Motor (Reduction gear box)
2. Valve & Mater Flange
3. Beam
4. Mounting device in the furnace wall
5. Motor cable
6. Front bracket
7. Feed tube
8. Lance tube and nozzle
9. Electrical box & Travel control
10. Spiral phase mechanism
11. Positive air piping system
