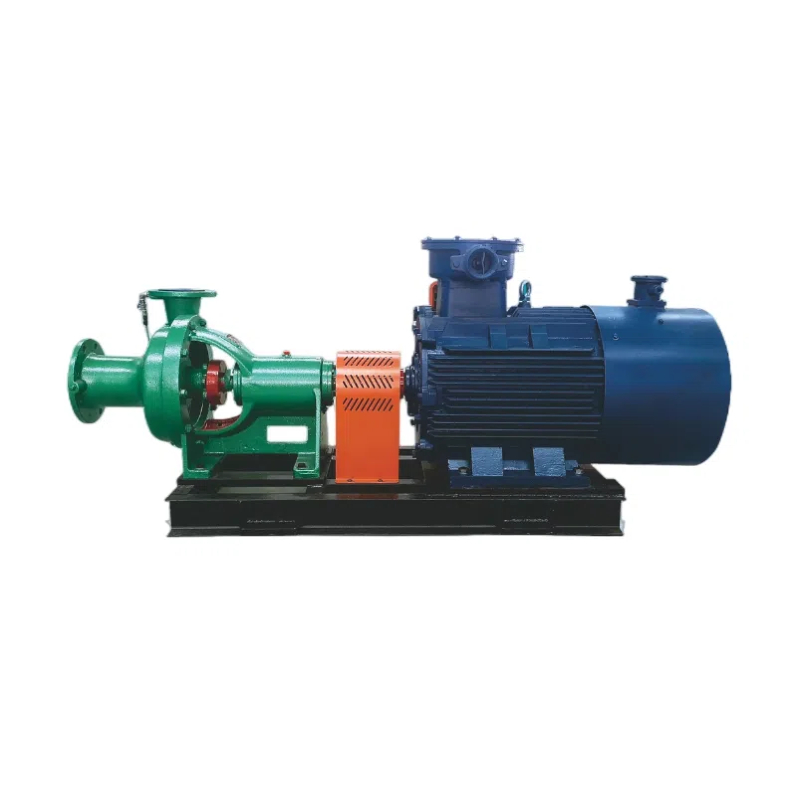

N-Type Condensate Pump

N-type condensate pumps are used in thermal power plants to transport condensate water and other liquids similar to condensate water, and can also be used in other places where the medium is similar to condensate water.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Key Advantages

*Excellent Anti-Cavitation Performance

Equipped with optimized hydraulic model and inducer design (for most models), which can stably operate under vacuum conditions of thermal power plant condensers, effectively avoiding cavitation damage and ensuring continuous and stable operation.

*Wide Adaptability to Working Conditions

The medium temperature can reach up to 120℃ (for partial models), and it can adapt to the working conditions of high-temperature condensate and occasional flash steam, with a flow range of 5-100 m³/h and a head range of 12-141 m, matching different small and medium-sized power unit needs.

*Flexible Sealing and Material Options

Shaft seal can be selected as soft packing or mechanical seal according to actual needs; flow parts can be made of cast iron, carbon steel and other materials, which can be customized according to the medium characteristics.

Key Parameters Comparison

Manufacturer	Model Series	Flow Range (m³/h)	Head Range (m)	Medium Temp (℃)
Shanghai Kaiquan Pump	N Series (3N6, 4N6, 100N130, etc.)	8-100	38-141	≤80 (≤120 for partial models)
Changsha Kailite Pump	N Series NB/NBA Series GN/GNL3 Series	8-100 (N Series)	38-141 (N Series)	≤80 (≤120 for partial models)
Changsha Zhonglian Pump	N Series NBA Series GN Series GNL Series	5-137	12-170	≤80 (≤120 for partial models)

** N-type condensing pumps are all Horizontal Cantilever Single Suction Centrifugal Pumps, which are divided into three series according to their structure: Single-stage foundation type, Single-stage induction wheel type, and Two-stage type.

*** They are suitable for the vacuum working conditions of thermal power plant condensers, different flow/head and cavitation allowance requirements.

Shanghai Kaiquan Pump

Series	Model	Flow Range (m³/h)	Head Range (m)	Medium Temp (℃)	NPSHr(m)	NPSHa
Single-stage foundation	3N6	8-15	38–45	≤80	1.4–1.6	≥2.0
Single-stage foundation	4N6	18–30	42–50	≤80	1.6–1.8	≥2.2
Single-stage foundation	100N130	45–65	120–130	≤120	2.0–2.2	≥2.5
Single-stage induction wheel	6N6	35–55	55–65	≤80	1.8–2.0	≥2.0
Single-stage induction wheel	150N110	80–100	100–110	≤120	2.2–2.4	≥2.5
Two-stage	3N6×2	8–15	76–90	≤80	1.4–1.6	≥2.0
Two-stage	4N6×2	18–30	84–100	≤80	1.6–1.8	≥2.2

2. Changsha Kailite Pump

Series	Model	Flow Range (m³/h)	Head Range (m)	Medium Temp (℃)	NPSHr(m)	NPSHa
Single-stage foundation	3N6	8-15	38–45	≤80	1.4–1.6	≥2.0
Single-stage foundation	4N6	18–30	42–50	≤80	1.6–1.8	≥2.2
Single-stage foundation	100N130	45–65	120–130	≤120	2.0–2.2	≥2.5
Single-stage foundation	100N160	45–65	150–160	≤120	2.2–2.4	≥2.5
Single-stage induction wheel	6N6	35–55	55–65	≤80	1.8–2.0	≥2.0
Single-stage induction wheel	150N110	80–100	100–110	≤120	2.2–2.4	≥2.5
Two-stage	2.5N3x2	6-12	50-52	≤80	1.45-1.8	≥1.8
Two-stage	3N6×2	8–15	76–90	≤80	1.4–1.6	≥2.0
Two-stage	4N6×2	18–30	84–100	≤80	1.6–1.8	≥2.2

3. Changsha Zhonglian Pump

Series	Model	Flow Range (m³/h)	Head Range (m)	Medium Temp (℃)	NPSHa
Single-stage foundation	3N6	16.5-30	58-62	≤80	≥2.0
Single-stage foundation	4N6	30-50	60-63.5	≤80	≥2.2
Single-stage foundation	100N130	42-70	135-143	≤120	≥2.5
Single-stage foundation	100N160	36-72	156-170	≤120	≥2.5
Single-stage induction wheel	6N6	36-120	66-86	≤80	≥1.8
Single-stage induction wheel	150N110	80–100	112-122	≤120	≥2.0
Single-stage induction wheel	150N180	80	150	≤80	≥2.0
Two-stage	3N6×2	10-34	108-131	≤80	≥2.0
Two-stage	4N6×2	25-60	120-135	≤80	≥2.2
Two-stage	4N5x2	30-50	91-110	≤80	≥2.2
