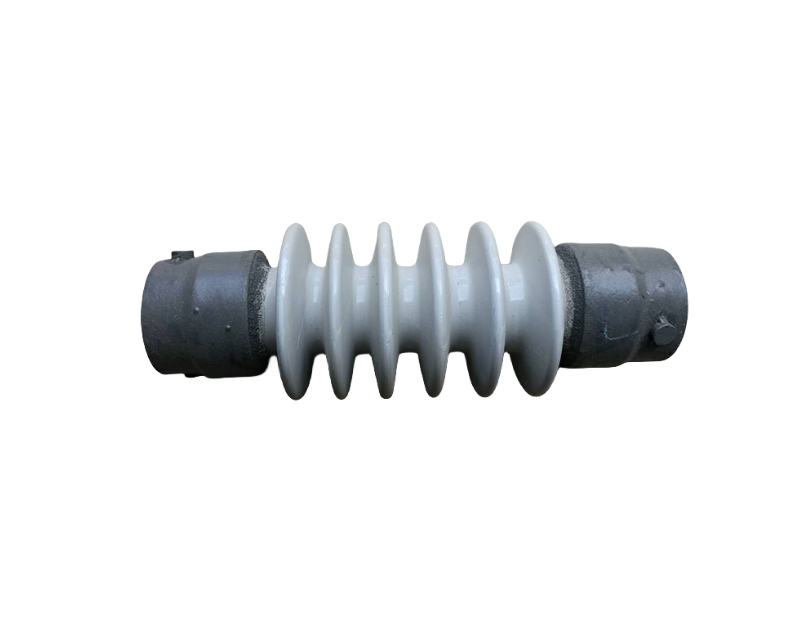

The product are molded in advanced isostatic pressing technology, made from 95% a-AL2O3 ceramic high strength porcelain formulas as the main raw materials, made by high temperature at 1650℃.They have the excellent high mechanical strength, good electric performance, especially in corrosion resistance and Thermal shock. That is widely used in Electrostatic Precipitator and desulfurization and denitrification equipment.
The three mounting types are Clip on, Flanges and Pin type.

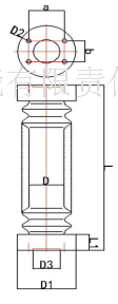

The different models can fulfill the different dimensions as the example following:

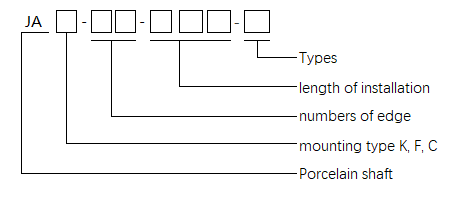

| Model | L | L1 | L2 | D | D1 | D2 | D3 | a | b |
| JAK18-630 | 630 | 53 | 35 | 80 | 120 | 18.5 | 53 | ||
| JAF10-390 | 390 | 53 | 80 | 120 | 4-M10 | 60 | 62 | 50 | |
| JAF21-640-A | 640 | 53 | 98 | 140 | 4-M10 | 60 | 62 | 50 | |
| JAF21-640 | 640 | 53 | 80 | 120 | 4-M10 | 60 | 62 | 50 | |
| JAK15-570 | 570 | 60 | 24 | 80 | 120 | 14 | 31 | ||
| JAK18-630-A | 630 | 53 | 35 | 98 | 130 | 18.5 | 53 | ||
| JAK10-460 | 460 | 53 | 35 | 80 | 120 | 18.5 | 53 | ||
| JAC12-460 | 460 | 400 | 98 | 120 | 22 | 100 | |||
| JAK15-560 | 560 | 53 | 35 | 80 | 120 | 25 | 32 | ||
| JAF12-420 | 420 | 60 | 80 | 170 | 4-ɸ11 | 100 | ɸ150 | ||
| JAF16-520 | 520 | 60 | 80 | 170 | 4-ɸ11 | 100 | ɸ150 | ||
| JAC10-500 | 500 | 20 | 75 | 140 | 12 | 26 |
Would you like to know the Technical Conditions of Installation?
The answer is very simple here, if that is not enough, please contact us by email or whatsapp.
The working temperature must be lower than 500℃.
Make sure the working voltage between 72 to 120KV.
The allowable torque is 4000N.M.
