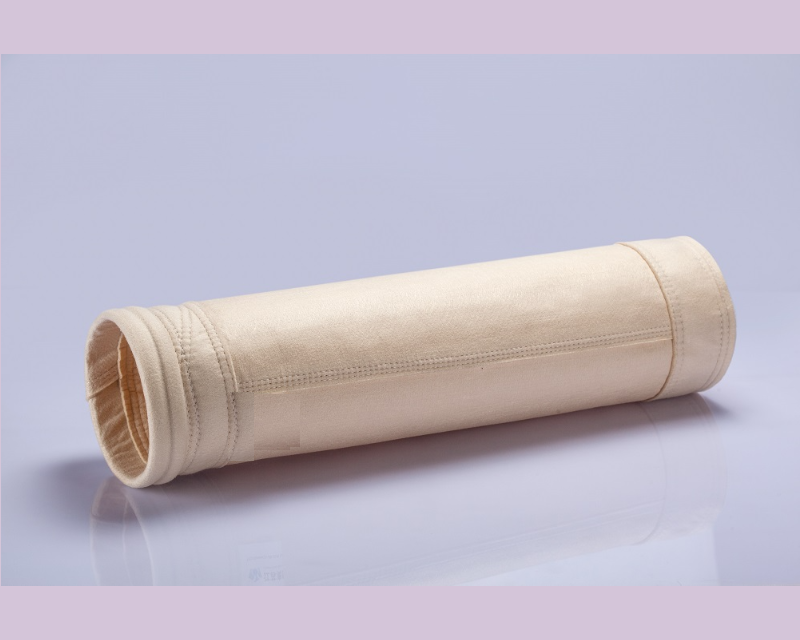

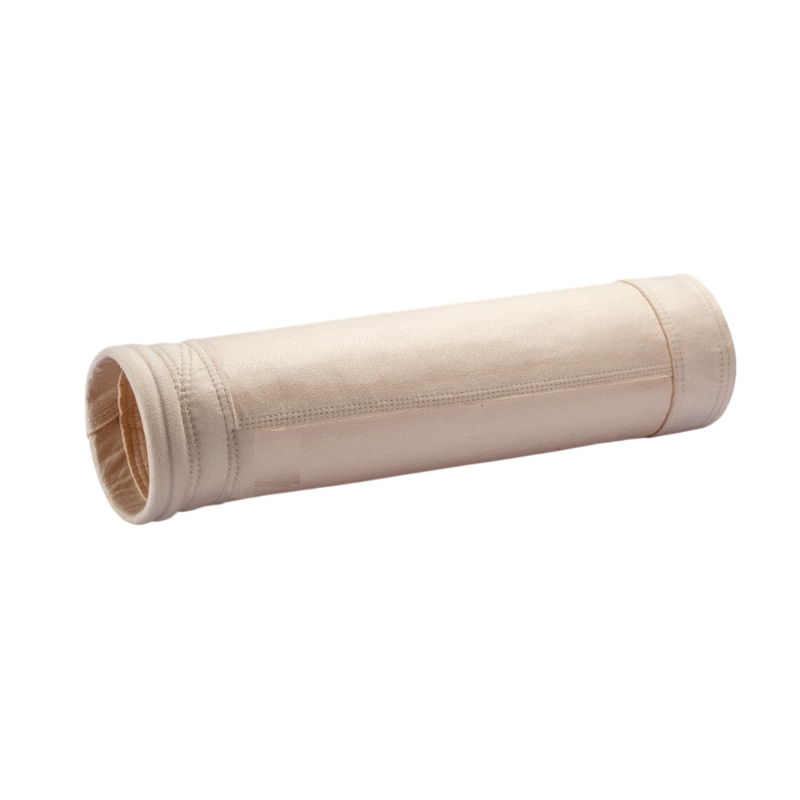

PPS Filter Bag

PPS filter bag (Polyphenylene Sulfide) is a high-performance high-temperature resistant filter material designed for harsh flue gas dust collection conditions. It is widely used in bag filters for coal-fired power plants, industrial boilers, waste incineration, metallurgy, cement and chemical industries.

With excellent thermal stability, chemical corrosion resistance and dimensional stability, PPS filter bags ensure high dust removal efficiency, low pressure loss and long service life under high-temperature and corrosive flue gas conditions.

Key Specifications

Material

Fiber: 100% PPS (Polyphenylene Sulfide)

Fabric: PPS needle punched felt

Finish: Heat setting, singeing, calendering; optional PTFE impregnation / membrane lamination

Temperature Resistance

Continuous operating temperature: 160°C – 190°C

Short-term peak temperature: 200°C – 220°C

Chemical Resistance

Excellent resistance to acid, alkali, hydrolysis and oxidizing flue gas

Suitable for SOx-containing flue gas in power plants and boilers

Common Dimensions

Diameter: Φ100mm, Φ120mm, Φ130mm, Φ150mm, Φ160mm

Length: 1000mm, 1500mm, 2000mm, 2500mm, 3000mm, 4000mm, 6000mm

Custom sizes available

Performance

Dust collection efficiency: ≥99.99%

Air permeability: stable, low resistance

Service life: 2 – 5 years under normal working conditions

Product Features

High temperature resistance for boiler and power plant flue gas

Excellent acid and alkali resistance, anti-hydrolysis

Stable dimensional stability, not easy to deform

Good air permeability, low operating pressure loss

High efficiency dust filtration, easy to clean

Long service life, reduces replacement frequency

Compatible with all standard baghouse collectors

Applications

Coal-fired power plant boiler flue gas dust removal

Industrial boiler and heating boiler dust collection

Waste incineration flue gas filtration

Steel, cement, chemical and metallurgical dust control

High-temperature, corrosive flue gas conditions

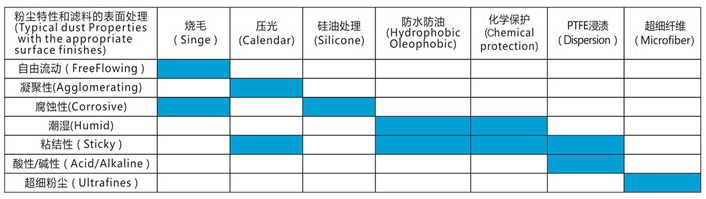

Recommended Surface Treatment for PPS Filter Bags

Different dust properties require different surface treatments to ensure optimal filtration efficiency, cleaning performance and service life. The following guide helps you select the most suitable treatment for your application.

How to Read This Guide

Each row represents a typical dust property.

The blue highlighted column indicates the most effective surface treatment for that condition.

For example:

Free-flowing dust: Choose singed finish for easy cake release.

Humid or sticky dust: Hydrophobic/oleophobic treatment prevents moisture and oil from clogging the fabric.

Acidic/alkaline flue gas: PTFE impregnation enhances chemical resistance.

Ultrafine dust: Microfiber layer improves capture efficiency for fine particles.

We can provide filter bags with one or multiple combined treatments according to your specific working conditions.

Why Choose Our PPS Filter Bags

Standardized industrial design compatible with mainstream dust collectors

Full size range for fast replacement

Stable quality under high temperature and corrosive conditions

Professional for power plant, boiler and industrial flue gas treatment

Custom size & material available for different working conditions
