XW-15N-XH, 2W-25N-XH
Round Star

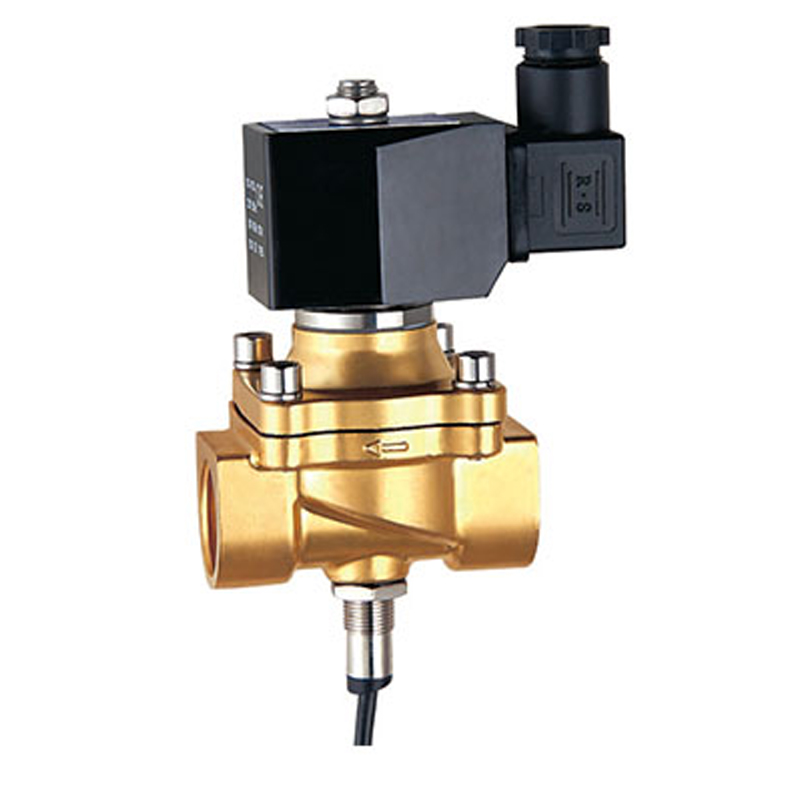

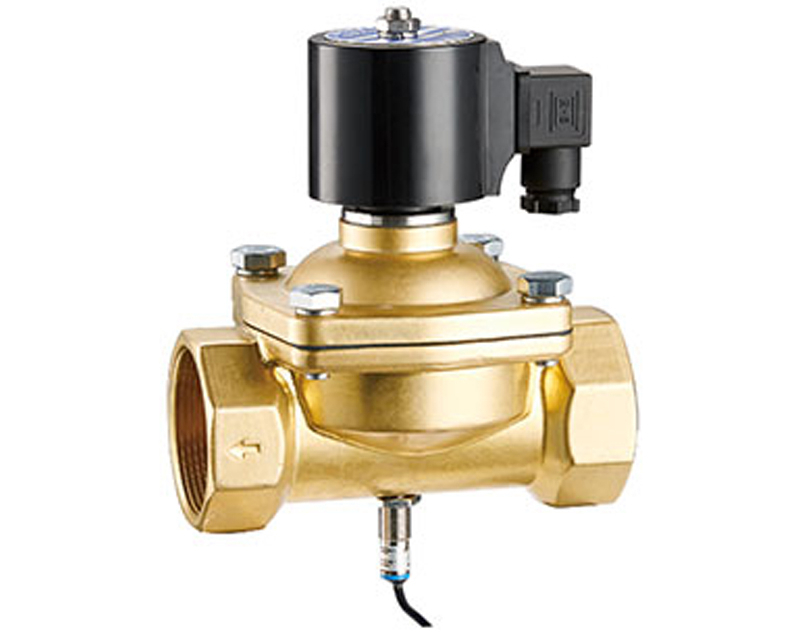

Signal feedback solenoid valve 1/2 "~2" DN15~DN100mm
Working medium: liquid, gas
Working pressure: 0bar~7bar
Valve body material: brass, stainless steel SS304
Connection method: G thread, NPT thread, flange connection
Fluid temperature: -10 ℃~70 ℃
Working form: pilot type, step-by-step direct action type
Sealing material: NBR, optional EPDM or VITON,
Working voltage: AC220-240V, AC110V 50/60HZ 20VA; DC24V/20W, IP65, H-level

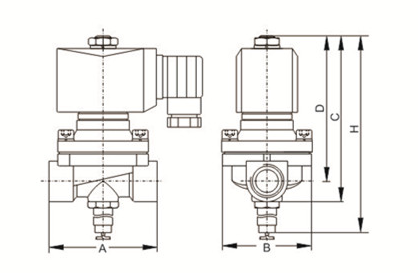

| Product Model | Flow Path(mm) | Screw Thread(G) | Cv | Working Pressure(bar) | Overall Dimension(mm) | ||
| Normally Closed Type | Normally Open Type | Normally Closed Type | |||||
| AC220V | DC24V | AC220V/DC24V | A×B×C×D×H | ||||
| 2W-15N-XH | 16 | 1/2" | 4.8 | 0~7 | 0~6 | 0~6 | 65×56×108×91×140 |
| 2W-20N-XH | 20 | 3/4" | 7.6 | 0~7 | 0~6 | 0~6 | 73×56×111×95×140 |
| 2W-25N-XH | 25 | 1" | 12 | 0~7 | 0~6 | 0~6 | 100×74×124×103×140 |
| 2W-32N-XH | 32 | 1'/4" | 24 | 0~7 | 0~6 | 0~6 | 110×85×154×129×165 |
| 2W-40N-XH | 40 | 1'/2" | 29 | 0~7 | 0~6 | 0~6 | 120×90×162×134×180 |
| 2W-50N-XH | 50 | 2" | 48 | 0~7 | 0~6 | 0~6 | 154×115×185×151×200 |

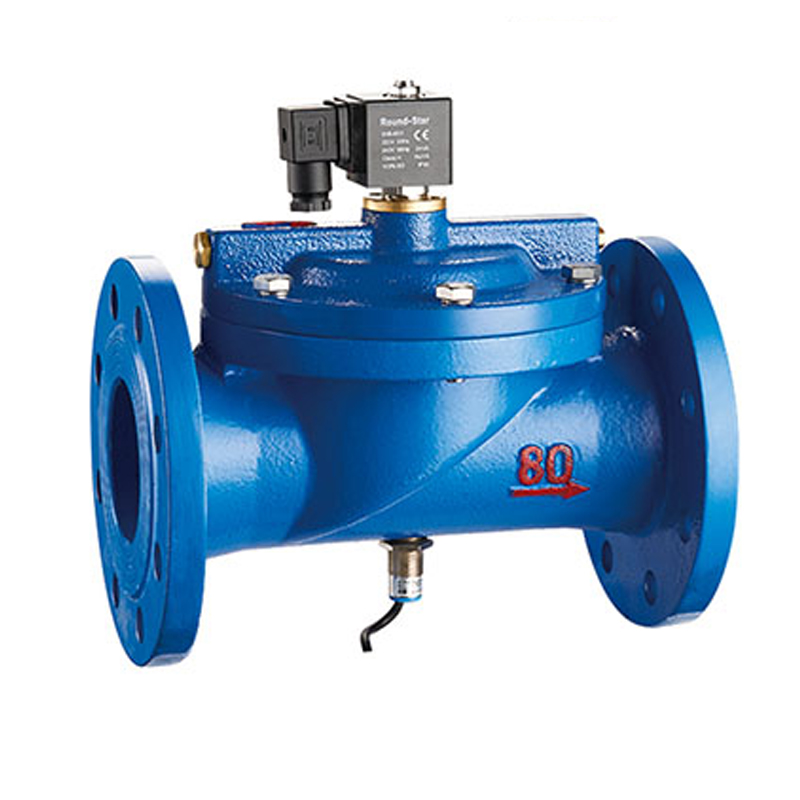

| DFD-65CF-XH | 65 | flange connection | 52 | 0.3~7 | 0~6 | 0~6 | 259×185×277×185×265 |
| DFD-80CF-XH | 80 | 82 | 0.3~7 | 0~6 | 0~6 | 278×200×289×189×275 | |
| DFD-100CF-XH | 100 | 128 | 0.3~7 | 0~6 | 0~6 | 350×220×316×206×285 | |
