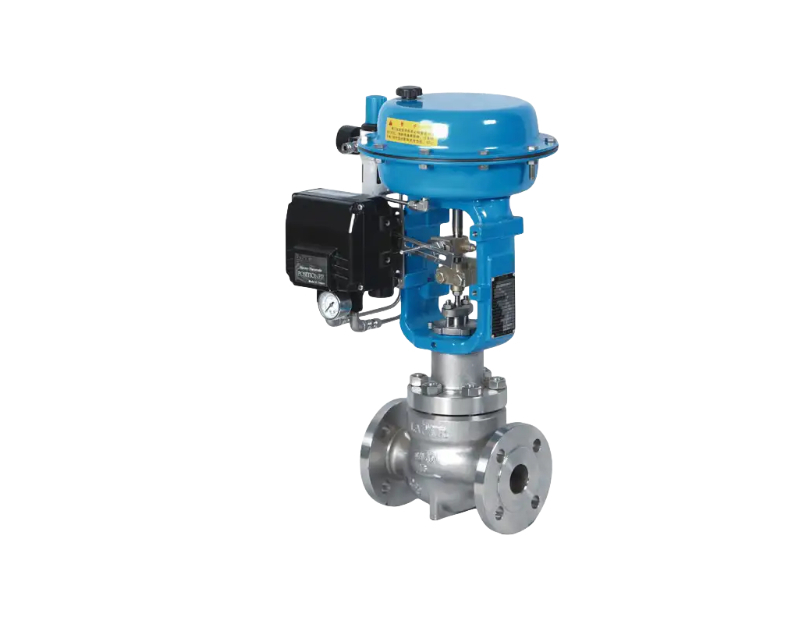

LAPAR
Feature
Compact structure, fewer parts, light weight
Wiring is simple, easy to operate
Adjusted performance, small pressure loss, flow ability
Able to apply a small amount of a certain viscosity and fiber medium
Parameter
<tr">Flow characteristics<td">Straight line, Equal percentage<td">Input signal<td">Body & Cap Material
| Actuator | Pneumatic, Pneumatic diaphragm, Electric |
| Control | On-off, Modulating, Inteligent |
| DN | 20~400mm |
| Pressure | PN1.6~25.0Mpa, ANI150~1500Lbs, JIS10~100K |
| Temperature | Std: -20~200°C, -40~250°C, -60~250°C Cooling type: -40~450°C, -60~450°C |
| Ambient temperature | -20~55°C |
| Inherent rangeability | 50:1 |
| Gas supply | 0.14~0.3Mpa |
| 4~20MA, 1~5V | |
| Output signal | 4~20MA, 1~5V |
| Connection | Flange |
| Structure | Standard Type, Bellows Seal Type, Cooling Type |
| WCB, WCC, WC6, CF8, CF8M, CF3, CF3M, etc | |
| Stem Material | 304, 316, 316L 17~4PH |
| Spool Material | 304, 316, 316L, 17~4H, Surfacing Stellite |
| Packing Material | PTFE, RTFE, Flexible graphite |
| Medium | Gas, Water and Oil, etc |
| Optionial | Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve |
| Remark | Commissioning has been completed in the factory connected to the gas source and the input signal can be used |
