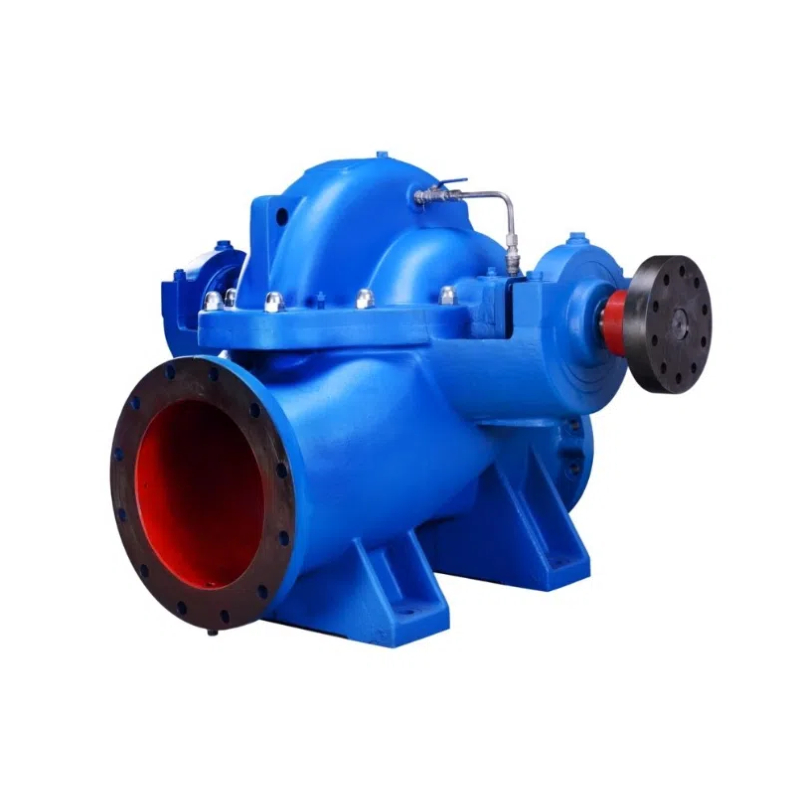

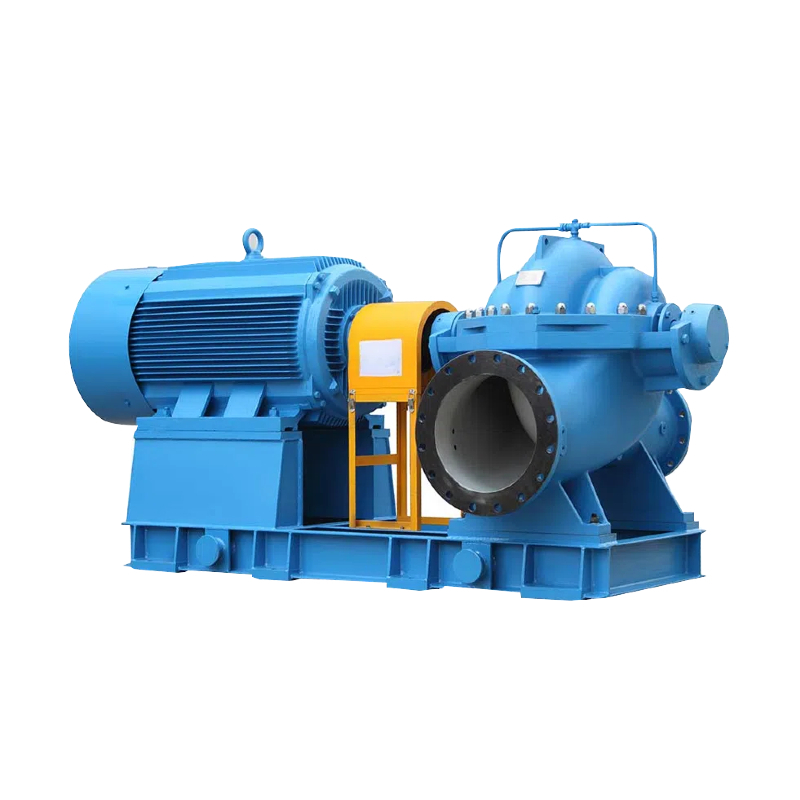

Single Stage Double Suction Split Case Pump

This horizontal single-stage double-suction split case pump is specially designed for circulating cooling water systems in thermal power plants, biomass power plants and small industrial power stations below 50MW.
It features large flow rate, stable operation, high efficiency and easy maintenance, making it the ideal choice for condenser cooling, plant water circulation and system replacement projects.

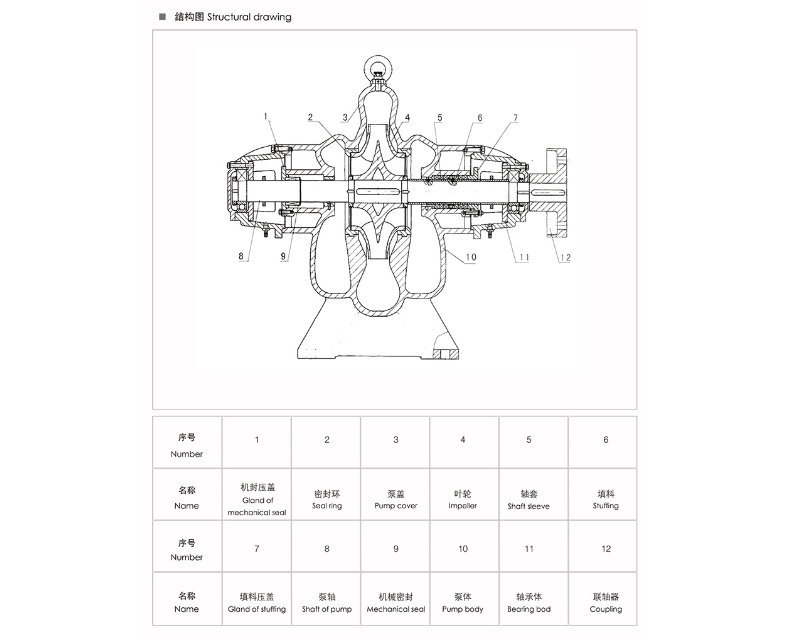

With a segmented split-case structure, the pump allows easy access to the impeller, shaft and sealing parts without disassembling the pipeline or motor.
It is widely used for cooling water supply, circulating water transportation and industrial water systems in aging power plant retrofits and new small-scale energy projects.

Availability:

Quantity:



Inquire Add to Basket

Brand:
CNP

Product Description

Performance Parameters

Item	Specification
Flow Rate	50 – 2000 m³/h (optimized for <50MW power plants)
Head	10 – 150 m
Operating Temperature	≤80°C (cooling water / clean water)
Speed	1450 / 2900 rpm
Inlet & Outlet Size	DN80 – DN600
Material	Cast Iron (standard), Stainless Steel optional
Seal Type	Mechanical Seal / Packing Seal
Application	Circulating Water Pump, Condenser Cooling Pump, Industrial Water Pump

*

Typical Models for Power Plants

10SH-13 / S150-300
8SH-9 / S125-250
14SH-19 / S200-350
12SH-19 / S250-300

Applications

* Condenser Circulating cooling water for < 50MW thermal power plants

* Biomass power plant cooling systerms

- Industrial boiler circulating water systems

- Power plant equipment cooling & industrial water supply

- Replacement & retrofit for aging circulating water pumps

Key Features

*Large flow rate, suitable for power plant cooling water circulation

*Double-suction design, balanced axial force, low vibration

*Horizontal split-case structure for easy maintenance

*High efficiency, energy-saving for long-term operation

*Perfect replacement for S/SH series pumps in old power plants

*Compatible with DG boiler feed pump systems for complete water supply solutions
