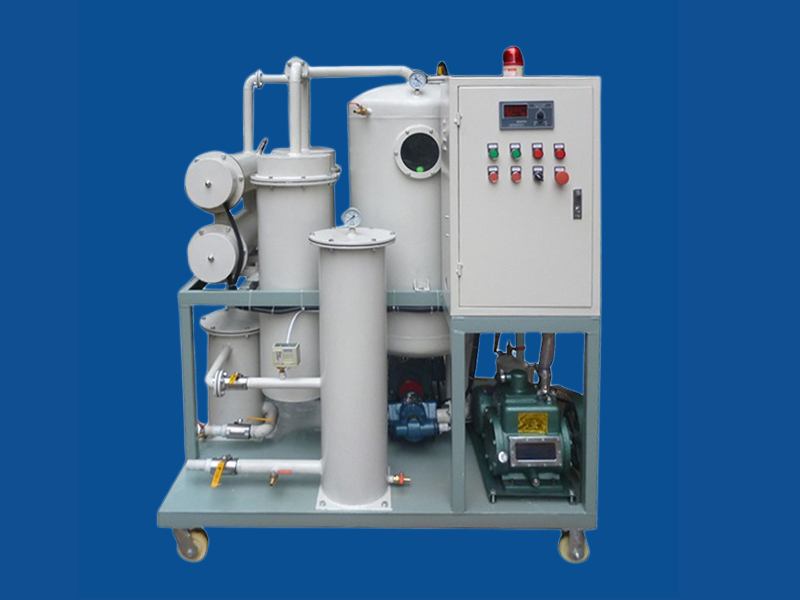

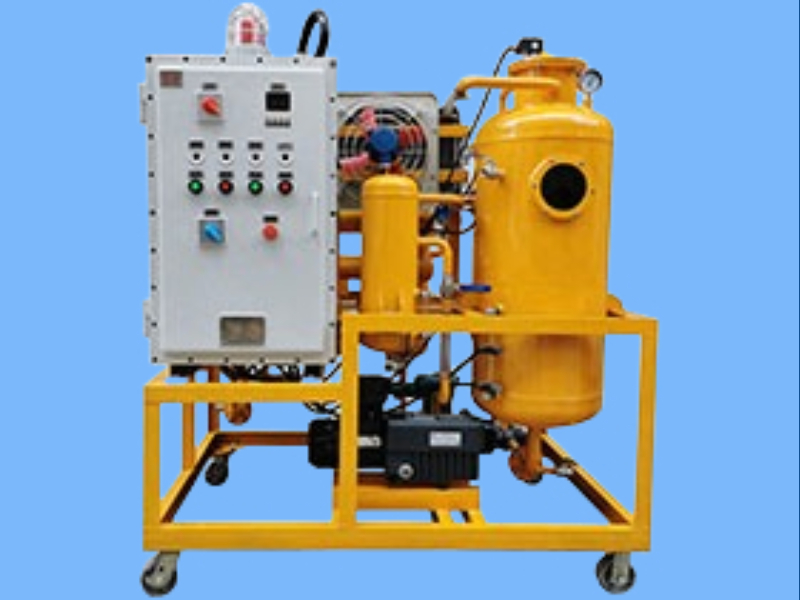

◆ Vacuum dehydration and degassing of oil products
Effectively separate emulsified water and free water in oil, and remove gas from oil; Mainly used for online purification of VG46 or VG32 or oil purification treatment during unit overhaul.
◆ Oil impurity filtration
Multistage gradually densifying filtration system, with gradually densifying filter elements and filtering accuracy of 1-5 μ M is optional.
◆ Filter and add (replenish) oil
Filter and refuel the oil tank during equipment installation or filter and refuel during operation.
◆ Regenerative acid removal
The use of a regenerative acid removal device can regenerate the oil to control its acid value.
The specifications can be based on different manufacture choose:
| Item | unit | TY-10 | TY-20 | TY-30 | TY-50 | TY-80 | TY-100 | TY-150 | TY-200 | TY-300 |
| Flow | L/h | 600 | 1200 | 1800 | 3000 | 4800 | 6000 | 9000 | 12000 | 18000 |
| work vaccum | Mpa | -0.06~-0.096 | ||||||||
| work pressure | Mpa | ≤0.5 | ||||||||
| operation temperature | ℃ | 40~70 | ||||||||
| Demulsification value | min | ≤15（GB/F7305) | ||||||||
| heat power | KW | 21 | 21 | 24 | 36 | 42 | 54 | 72 | 84 | 120 |
| total power | KW | 23 | 23 | 26 | 38 | 45 | 58 | 78 | 92 | 130 |
| in/outlet dia. | mm | 25 | 25 | 25 | 32 | 36 | 40 | 50 | 50 | 65 |
| weight | Kg | 400 | 400 | 420 | 450 | 500 | 600 | 750 | 900 | 1100 |
| Model | ZJCQ -1 | ZJCQ -2 | ZJCQ -3 | ZJCQ -4 | ZJCQ -6 | ZJCQ -9 | ZJCQ -12 |
| Flow (m3/h) | 1 | 2 | 3 | 4 | 6 | 9 | 12 |
| oil temperature (℃) | 40-70 | ||||||
| work vacuum (Mpa) | -0.06～-0.096 | ||||||
| work pressure (Mpa) | ≤0.5 | ||||||
| heat power (KW) | 12 | 12 | 24 | 36 | 48 | 72 | 72 |
| total power (KW) | 13.59 | 13.79 | 26.29 | 42.29 | 54.29 | 77.09 | 78.09 |
| in/outlet dia (mm) | DN20 | DN25 | DN25 | DN32 | DN40 | DN50 | DN50 |
| suitable for | turbine oil, hydro oil | ||||||
| power resource | 380V/50Hz | ||||||
