ZK-025~040-08、ZK-15~20、ZK-25、ZK-32~50
Round Star

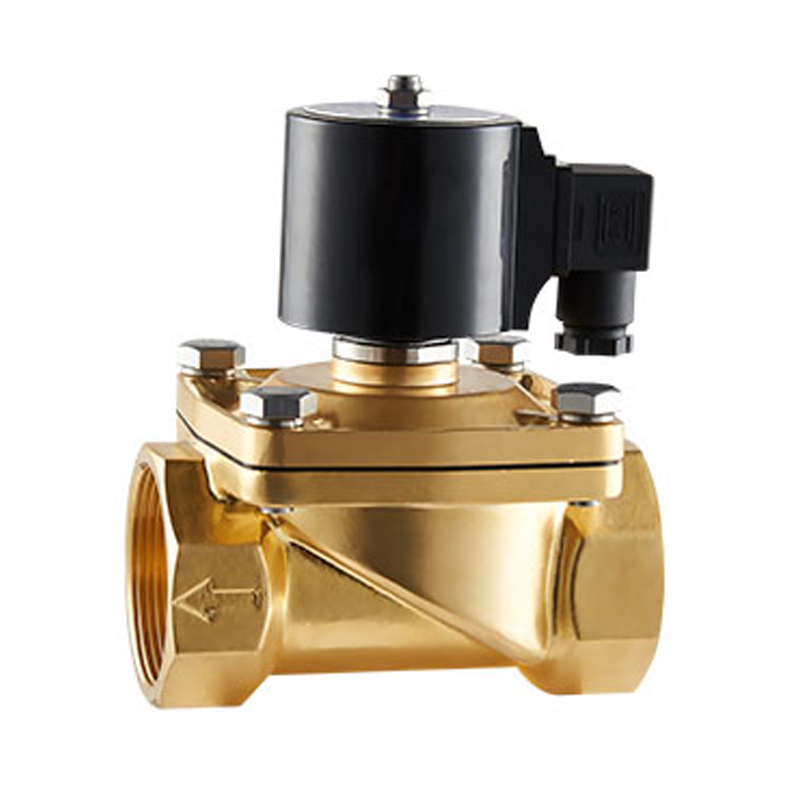

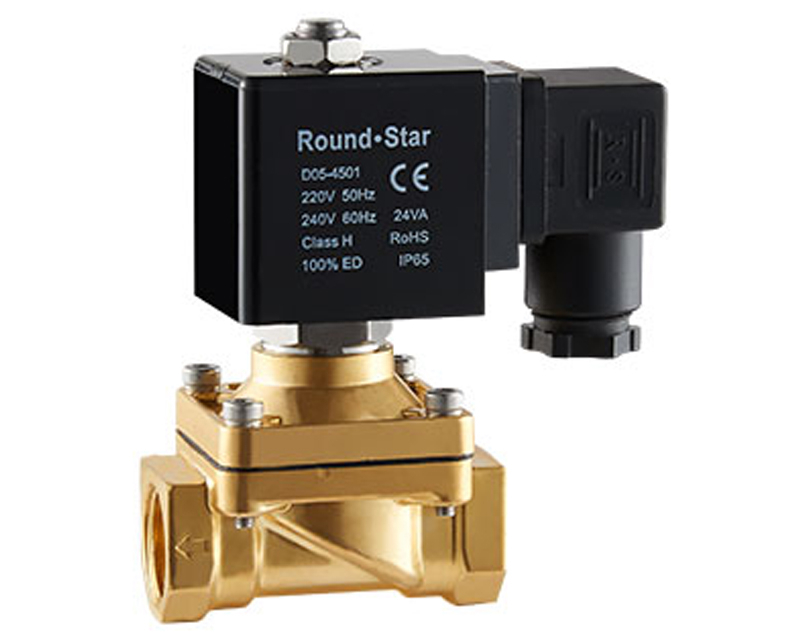

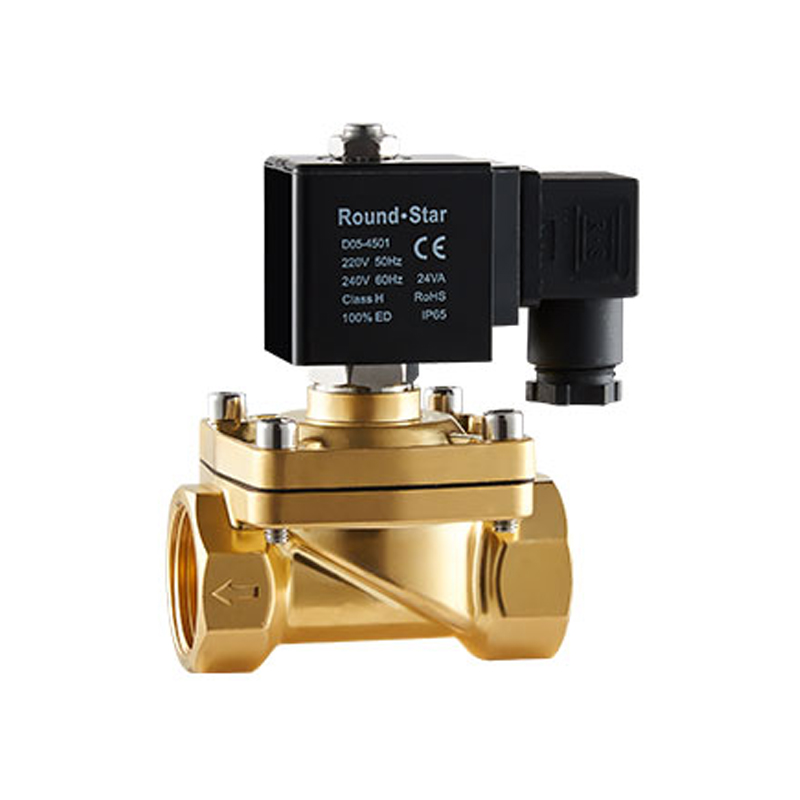

ZK series vacuum solenoid valve DN15 ~ DN100mm
Working medium: water, liquid, gas
Working pressure: -1bar ~ 0bar, 0bar ~ + 1bar
Valve body material: brass, stainless steel SS304
Link mode: G thread, NPT thread, flange
Fluid temperature: -10 ℃ ~ 80 ℃
Working form: direct-acting, step-by-step direct-acting
Sealing material: NBR, EPDM, VITON,
Working voltage: AC220-240V, AC110V 50/60HZ, DC24V/12V, IP65, Class H

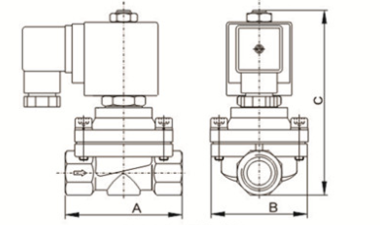

Product Model | Size(mm) | Screw Thread | Cv | A(mm) | B(mm) | C(mm) |
| ZK-025-08 | 2.5 | 1/4" | 0.2 | 41 | 27 | 81 |
| ZK-030-08 | 3.0 | 1/4" | 0.25 | 41 | 27 | 81 |
| ZK-040-08 | 4.0 | 1/4" | 0.3 | 41 | 27 | 81 |
| ZK-050-08 | 5.0 | 1/4" | 0.4 | 43.5 | 30 | 81 |
ZK-040-10 | 4.0 | 3/8" | 0.3 | 54 | 32 | 81 |
| ZK-15 | 15 | 1/2" | 3.5 | 60 | 45 | 108 |
| ZK-20 | 20 | 3/4" | 7.6 | 67 | 50 | 114 |
| ZK-25 | 25 | 1" | 12 | 82 | 66 | 122 |
| ZK-32 | 32 | 1'/4" | 24 | 102 | 82 | 147 |
| ZK-40 | 40 | 1'/2" | 29 | 110 | 85 | 153 |
ZK-50 | 50 | 2" | 48 | 134 | 108 | 166 |
| ZL-65JF | 65 | flange | 55 | 258 | 185 | 330 |
| ZK-80JF | 80 | flange | 85 | 280 | 200 | 330 |
ZK-100JF | 100 | flange | 129 | 354 | 220 | 390 |
