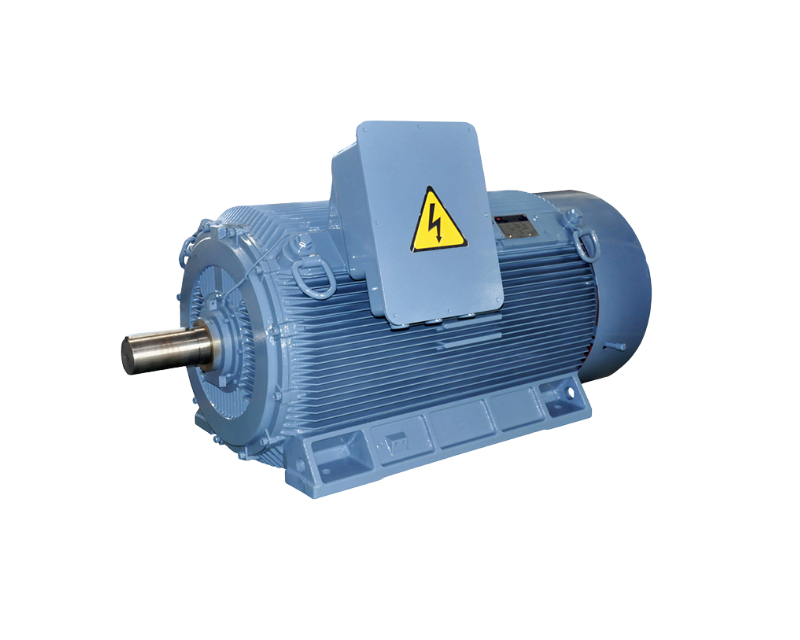

YE3 series three phase motor is ultra-high efficiency motor, and its efficiency comply with IE3.
PERFORMANCE DATA
2 POLES – 3000 RPM SYNCHRONOUS SPEED 50HZ IE3
4 POLES – 1500 RPM SYNCHRONOUS SPEED 50HZ IE3
6 POLES – 1000 RPM SYNCHRONOUS SPEED 50HZ IE3
6 POLES – 1000 RPM SYNCHRONOUS SPEED 50HZ IE3
MODEL EXAMPLE
| 2 POLES | 4 POLES | 6 POLES | 8 POLES |
| YE3-80M1-2 | YE3-80M1-4 | YE3-80M1-6 | YE3-80M1-8 |
| YE3-90S-2 | YE3-90S-4 | YE3-90S-6 | YE3-90S-8 |
| YE3-100L-2 | YE3-100L-4 | YE3-100L-6 | YE3-100L-8 |
| YE3-100L-2 | YE3-100L-4 | YE3-100L-6 | YE3-100L-8 |
| YE3-132S1-2 | YE3-132S1-4 | YE3-132S1-6 | YE3-132S1-8 |
| YE3-160M1-2 | YE3-160M1-4 | YE3-160M1-6 | YE3-160M1-8 |
| YE3-180M-2 | YE3-180M-4 | YE3-180M-6 | YE3-180M-8 |
| YE3-200L1-2 | YE3-200L1-4 | YE3-200L1-6 | YE3-200L1-8 |
| YE3-225M-2 | YE3-225M-4 | YE3-225M-6 | YE3-225M-8 |
| YE3-250M-2 | YE3-250M-4 | YE3-250M-6 | YE3-250M-8 |
| YE3-280SM-2 | YE3-280SM-4 | YE3-280SM-6 | YE3-280SM-8 |
| YE3-315SM-2 | YE3-315SM-4 | YE3-315SM-6 | YE3-315SM-8 |
| YE3-315L1-2 | YE3-315L1-4 | YE3-315L1-6 | YE3-315L1-8 |
| YE3-355L1-2 | YE3-355L1-4 | YE3-355L1-6 | YE3-355L1-8 |
MOUNTING ARRANGEMENTS
| FOOT MTG HORIZ | FLANGE MTG | FOOT MTG VERT | FOOT/FLANGE MTG |
| B3 IM1001 IM1002 | B5 IM3001 | V5 IM1011 | B3/B5 IM2001 |
| B6 IM1051 IM1052 | V1 IM3011 | V6 IM1031 | V1/V5 IM2011 |
| B7 IM1061 IM1062 | V3 IM3031 | V3/V6 IM2031 | |
| B8 IM1071 IM1072 |
B3-Foot mounted

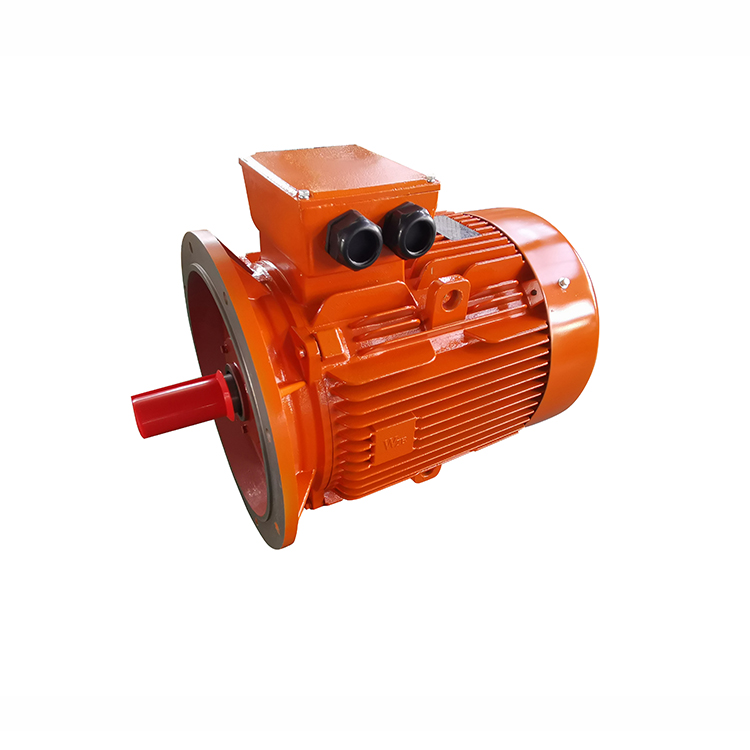

B5-Flange mounted-horizontal
B3/B5-Foot and Flange mounted
V1-Flange mounted-vertical
