PRODUCT INFO:

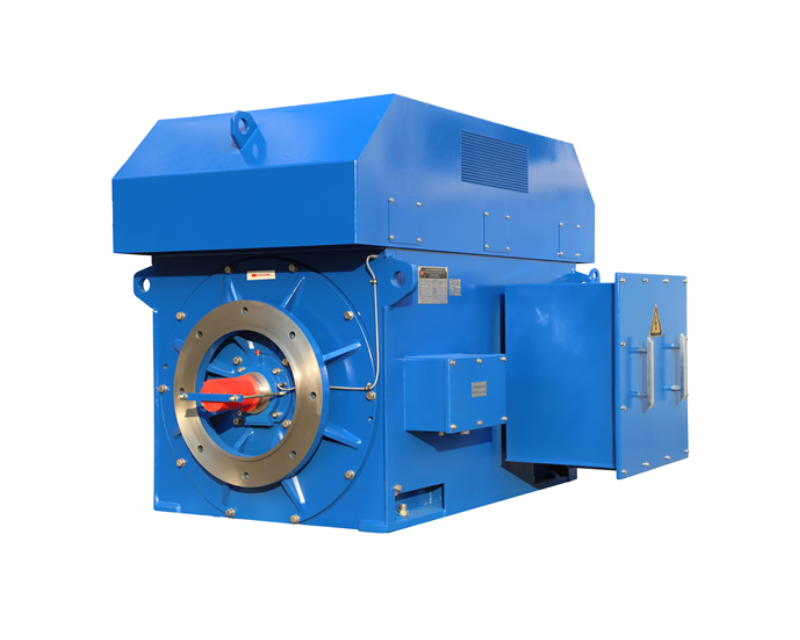

YKK、YXKK series high voltage three-phase asynchronous motor, with the advantages of high efficiency, energy saving, low noise, small vibration, light weight, reliable performance, convenient installation and maintenance, can be used to drive various general machinery, such as compressors, pumps, crushers, cutting machine tools, transportation machinery and other mechanical equipment, in mining, mechanical industry, petrochemical industry, power plants And other industrial and mining enterprises in the role of the prime mover.
COMMON MODELS:
YKK355 / YKK400/ YKK450 / YKK500 / YKK560 / YKK630 / YKK710 / YKK800
YXKK355 / YXKK400/ YXKK450 / YXKK500 / YXKK560 / YXKK630 / YXKK710 / YXKK800
MAIN PARAMETERS:
| Power Range | 185kW～5600 kW |
| Seat Center Height | 355～800 |
| Voltage Frequency | 6KV, 3KV or 10KV, 50Hz |
| Cooling Mode | 2-pole IC616 or IC611, 4-12 pole IC611 |
| Protection Level | IP44, IP54, IP55 |
| Insulation Level | 155 (F) level insulation |
| Ambient Temperature | - 15 to + 40 degrees Celsius |
| Installation Form | IMB3 |
PRODUCT INFO:
YKK、YXKK series high voltage three-phase asynchronous motor, with the advantages of high efficiency, energy saving, low noise, small vibration, light weight, reliable performance, convenient installation and maintenance, can be used to drive various general machinery, such as compressors, pumps, crushers, cutting machine tools, transportation machinery and other mechanical equipment, in mining, mechanical industry, petrochemical industry, power plants And other industrial and mining enterprises in the role of the prime mover.
COMMON MODELS:
YKK355 / YKK400/ YKK450 / YKK500 / YKK560 / YKK630 / YKK710 / YKK800
YXKK355 / YXKK400/ YXKK450 / YXKK500 / YXKK560 / YXKK630 / YXKK710 / YXKK800
MAIN PARAMETERS:
| Power Range | 185kW～5600 kW |
| Seat Center Height | 355～800 |
| Voltage Frequency | 6KV, 3KV or 10KV, 50Hz |
| Cooling Mode | 2-pole IC616 or IC611, 4-12 pole IC611 |
| Protection Level | IP44, IP54, IP55 |
| Insulation Level | 155 (F) level insulation |
| Ambient Temperature | - 15 to + 40 degrees Celsius |
| Installation Form | IMB3 |
